Stainless Steel Auger Screw Feeder For Powder

FOB Reference Price:Get Latest Price
$980.00 - $8,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
LSY auger screw feeder
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Screw Conveyor
Material:
Stainless Steel
Material Feature:
Fire Resistant
Structure:
Conveyor System
Load Capacity:
large capacity
Place of Origin:
Henan, China
Brand Name:
PK
Voltage:
as your request
Power(W):
1.1-22Kw
Dimension(L*W*H):
as the model you choose
Certification:
CE, ISO9001:2008, SGS, BV,TUV
Model:
LSY100/120/140/1600/200/250/300/400
Metric diameter of screw:
90-362mm
Rotary speed of main axis:
300-170r/min
Diameter of main case:
108-402mm
Max capacity:
7-120t/h
Max Length of conveying length:
8-25m
Working angle:
0°~60°
Feeding material:
Cement, concrete, coal dust, carbon black, soda ash, flour, grain,pulp
Conveying trough:
"U" and tubular shape
Conducted via alibaba.com:
hot sale, Exported to USA, Europe, Asia, to all over the world
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
1. wooden case 2. standard package 3. seaworthy 4.as request
Port
qingdao port or other
Product Description

Stainless Steel Auger Screw Feeder For Powder

Stainless Steel Auger Screw Feeder For Powder is a kind of continuous transmission equipment extensively used in the fields of the metallurgy, construction materials, chemical industry, food and the machinery processing. Horizontal screw conveyor has the advantages of sealed operation, simple structure. screw conveyor suitable for conveying powdery, granular and small bulk materials horizontally or aslope, such as coal, ash, slag, cement, food, etc. screw conveyor is an new transportation equipment with power device,gear box,coupling,screw axis and hanging bearing.the screw axis is made of several sections which connected with spline.The conveyor hold large load capacity and convenient to dismounting. open a besel on the casing to ensure a safe operation.
Application:

Stainless Steel Auger Screw Feeder For Powder is widely used in chemical, metallurgy, paper making, and construction industries. The equipment is mainly suitable for field flowing work, such as concrete mixing station, bulk material transit storage, etc.

Performance and Features:

  1. Simple structure, good sealing, large capacity, easy operation, material charging and unloading in multiple spot.
  2. Working temperature is -20~50°C, with material temperature below 200°C.
  3. ISO9001:2008, CE certificate, SGS report.
  4. Alternative conveying trough, including U and tubular shape.
  5. Totally-enclosed structure without causing any environmental pollution.
  6. Construction available in mild steel and stainless steel.
  7. Easy assembly and replacement of component parts.
  8. Easy maintenance and low operating cost.
  9. Multiple inlets and outlets.
Working Principle:

Stainless Steel Auger Screw Feeder For Powder consists of electric motor driven spiral, which is the only moving part, rotates within a food grade & sealed tube.The material moves along the spiral within the tube. The unique action of the flexible spiral conveyor eliminates the risk of the product separation that can take place in conventional pneumatic conveying systems where mixed materials have components of different densities and particle size.

We mainly provide two kinds of screw conveyors

1. LS Series (Tubular and Trough Type)

i) Adopting DIN 15261-1986 standard;

ii) Screw diameter is from 100mm to 1250mm, with conveyor length up to 70m;

iii) Inclination angle is below 20 degree.

2. LSY Seris (Tubular Type)

i) Specialized cement screw conveyor;

ii) Screw diameter is 90/ 115/ 135/ 163/ 185/ 237/ 285/ 362mm, with conveyor length up to 22m;

iii) Inclination angle is below 60 degree.



Packaging & Shipping



Product Show
Detail Pictures
Technical Parameters

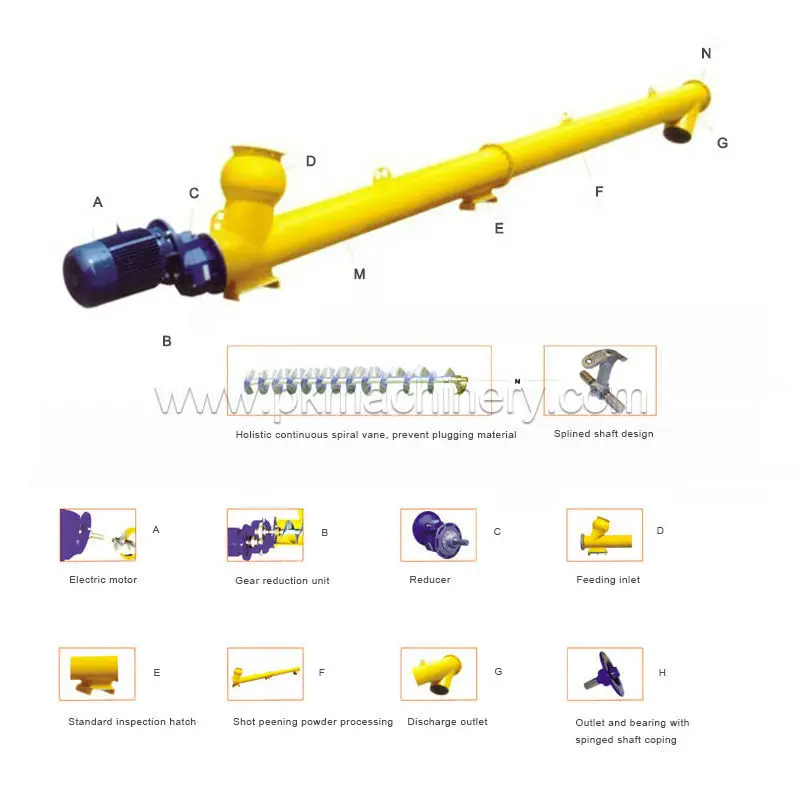

Single shaft spiral screw conveyor mainly consists of tube (head/ trail/ hanging bearings, conveying spiral, housing, cover plate and base plate), inlet and outlet chutes, as well as driving device (electric motor, reducer, coupling and base plate).

Model

LSY100

LSY120

LSY140

LSY160

LSY200

LSY250

LSY300

LSY400

Metric diameter of screw (mm)

90

115

135

163

185

237

285

362

Rotary speed of main axis (r/min)

300

300

300

308

260

200

170

170

Diameter of main case(mm)

108

133

159

194

219

273

325

402

Max capacity (t/h)

7

10

15

25

40

60

90

120

Max Length of conveying length L (m)

8

10

12

15

18

25

25

25

Working angle (degree)

0°~60°

0°~60°

0°~60°

0°~60°

0°~60°

0°~60°

0°~60°

0°~60°

Motor

model

L≤7M

Y90S-4

Y100L1-4

Y100L2-4

Y132S-4

Y132M-4

Y160L-6

Y180M-4

Y180M-4

Power(kw)

1.1

2.2

3

5.5

7.5

11

18.5

18.5

model

L≥7M

Y100L1-4

Y100L2-4

Y112M-4

Y132M-4

Y160M-4

Y180L-6

Y180L-4

Y180L-4

Power( kw)

2.2

3

4

7.5

11

15

22

22

Note: the parameter above is just for reference,it can be customized by different requirment.
Information Needed For The Quotation

1. Material name:_______

Physical characteristics

Bulk density:___t/m³

Feeding size:____mm

Working temperature:____degree

Moisture:____

2. Processing capacity:____(t/h or m³/h)

3. Inclination angle:__________degree

4. What is the conveying length?(the distance between the inlet and outlet)

Conveying length:_______m



Latest Export News
Screw Conveyor will be Delivered to Pakistan
Screw conveyor and scraper conveyor are ready to deliver to Pakistan on Aug. 13th, 2015 as planned.

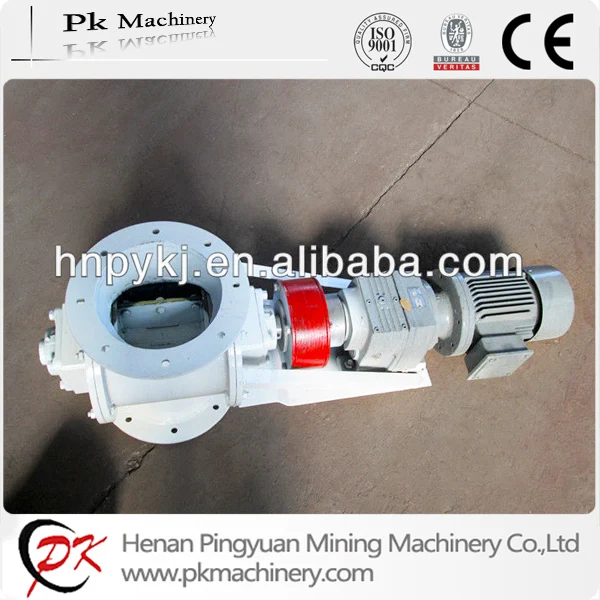

As we all know, screw conveyor is widely used in dust removal, chemical, metallurgy, paper making, and construction industries which conveys powder or small particles. Rotary valve is used for continuous and quantitative feeding equipment conveyors material from the upper dust ash hopper into the screw conveyor.
