Bulk material movable belt conveyor

FOB Reference Price:Get Latest Price
$760.00 - $9,450.00 / Sets | 1 Set/Sets (Min. Order)
Type:
Bucket Conveyor Gravity Conveyor Screw Conveyor Vibrating Conveyor
Load Capacity:
large
Model Number:
DT
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Machinery Repair Shops, Food & Beverage Factory, Home Use, Food Shop, Printing Shops
Condition:
New
Material:
Stainless Steel
Material Feature:
Fire Resistant
Structure:
Belt Conveyor
Place of Origin:
China
Brand Name:
PK
Voltage:
as your request
Power(W):
as your request
Dimension(L*W*H):
as your request
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Field maintenance and repair service, Engineers available to service machinery overseas
Design:
by our professional engineer
CColor:
as your request
Application:
coal, sand, gravel, stone,grain
Belt material:
PVC, cotton, steel
Angle:
as your require
Belt Width:
500mm,650mm, 800mm, 1000mm
Conveying Length:
3-20m
Belt Speed:
0.8-1.6 m/s
Inclination Angle:
10-35 degree
Supply Ability
Supply Ability:
150 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard packing As request
Port
Tianjin or Qingdao Lianyungang or other port
Bulk material movable belt conveyor



Product description

It is a kind of machinery that can transfaer the material continuously by friction drive.
According to different transport requirements, the transport system can be single belt conveyor or consist of several conveyors or be combined with other conveying equipments.
running machine belt can be installed horizontally or aslant to meet the needs of different production lines.



Advantages

  • High precision, high loading capacity with hard mask gear(2 to 3 times more than soft mask gear)
  • long service life ( reach 10 years)
  • compact construction and small floor space (reduce above 50%)
  • light weight and small volume (reduce 50%)
  • specially vertical driving construction, more used in mining delivery machinery under coal mine well.



Working Principle

Mobile belt conveyor with hopper is divided into rise-and-fall and non rise-and-fall conveyors. High quality movable belt conveyor is driven by electric pulley, rising &falling and running of whole machine are all nonmobile. universal wheel is mounted below device, makes the conveyor a flexible motion. the transport height can be adjusted to meet different operation demand. With steel tube construction, leggiere, beautiful and sound mobility.



Performance and Features

1. A wider range of material can be handled which pause problems in other transportation means. Belt conveyor can be used for abrasive, wet, dry, sticky or dirty material. The lump size of the transported material is limited by the width of the belt. Belts up to 1400 mm wide are used in mining industry.

2. Higher capacity can be handled than any other form of conveyor at a considerably lower cost, ton/km. Conveyor belts with capacity of 11000t/h and even higher can be deployed to match with higher capacity mining machinery.

3. Longer distances can be covered more economically than any other transportation system. A single belt conveyor or a series of belt conveyors can do this. Belt conveyors can be adopted for cross-country laying.

4. By the use of many forms of ancillary equipment such as mobile trippers or spreaders bulk material can be distributed and deposited whenever required.

5. Many other functions can be performed with the basic conveying like weighing, sorting, picking, sampling, blending, spraying, cooling, drying etc.

6. Structurally it is one of the lightest forms of conveying machine. It is comparatively cheaper and supporting structures can be used for many otherwise impossible structures such as crossing rivers, streets and valleys.

7. The belt conveyor can be adopted for special purposes (fire resistant, wear resistant, corrosion resistant, high angle negotiation etc.) and can be integrated with other equipment.

8. It can be horizontal, incline or decline or combination of all.

9. Minimum labour is required for the operation and maintenance of belt conveyor system.

10.In underground mine transport, belt conveyor can be used in thin seams as it eliminates the rock works that might otherwise be required to gain haulage height. Moreover, belt conveyor can provide continuous haulage service from pit bottom to the surface.



Technical parameters

The following data is only for referance,if you want to order our products,Please choose the matching model or tell me your require,so that our engineers can choose the better model for you .

Model

Belt width
(mm)

Conveying Distance
(m)

Belt Speed
(m/s)

Lifting Height
(m)

Slope Angle
(Degree)

Capacity
(m3/h)

DY50

500

5-20

0.8-1.6

adjustable

10-26

50-140

DY65

650

5-20

100-250

DY80

800

5-20

170-350

DY100

1000

5-20

270-550



Selection guidelines

If you want to order our products, please answer to these questions carefully. So that we can better to help you to chose the matching model.

  • What's the material will you transported, bag material or bulk material?
  • If bag material, please tell us the weight of every bag, If bulk material, please tell us the capacity?
  • What's the length and the lifting height do you required?



Components of Belt Conveyor


BeltBelt is used for moving and supporting surface on which the conveyed material rides. It is the tractive element. The type of belt used need to depend on the nature of materials to be transported.
IdlerIdlers are the supports for the carrying and return stands of the belt.
DriveDrive that imparts power to one or more pulleys to move the belt and its loads.
StructureStructure is the support and maintains the alignments of the idlers and pulleys. Besides, it also supports the driving machinery.

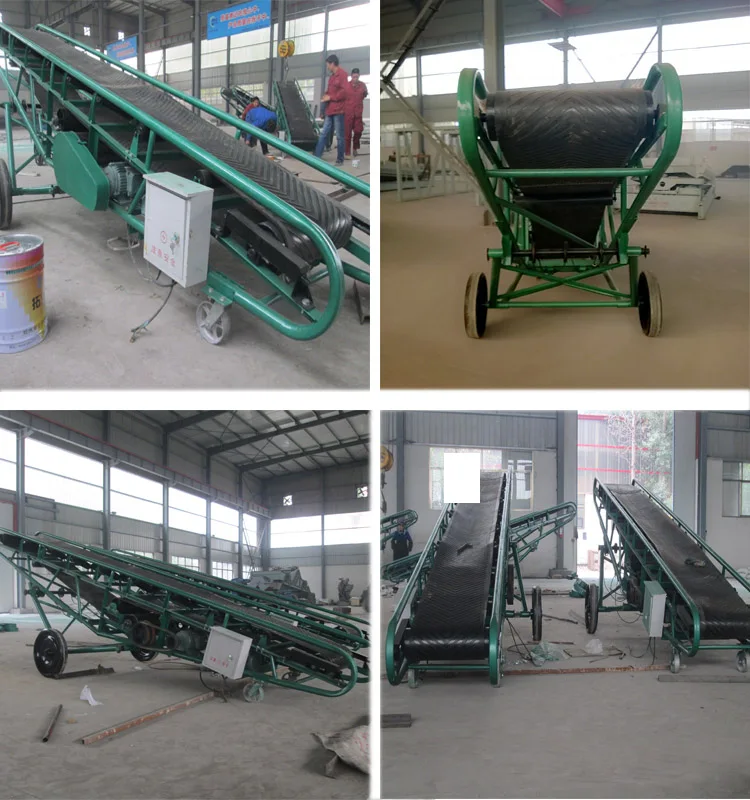

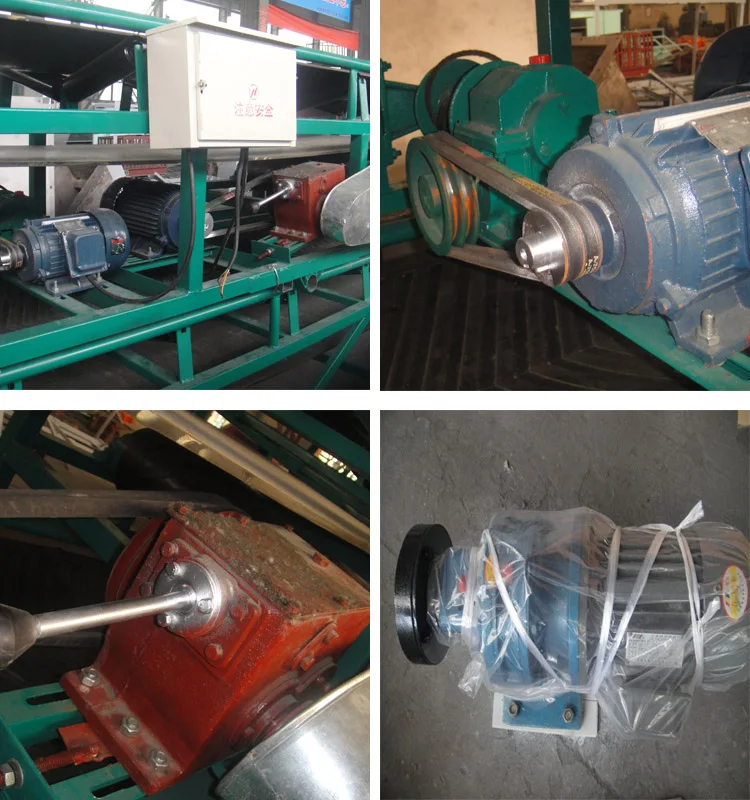

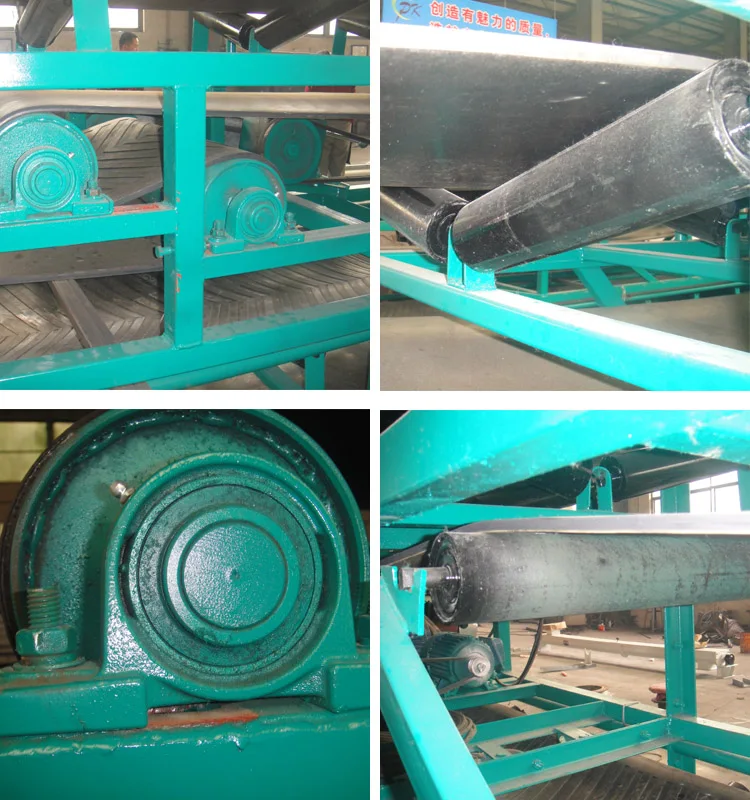

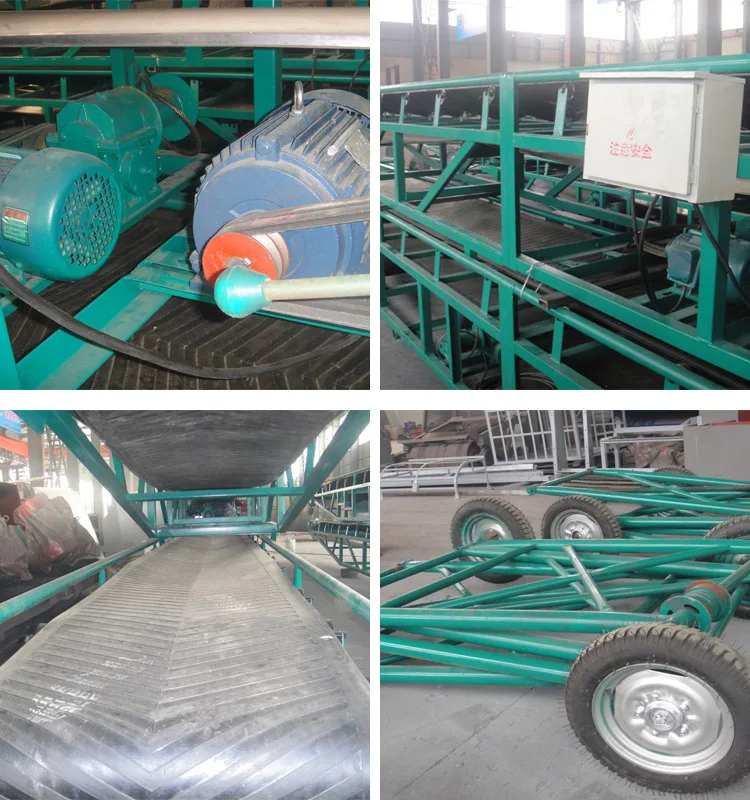

Detailed Pictures











Packaging & Transporting & onsite pictures





Certification---ISO9001:2008, BV, SGS, CE certification
