Quick Details

  • Condition: New
  • Type: Circular
  • Application: circular vibrating screen for sieving sand
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: PK
  • Model Number: YK circular vibrating screen
  • Voltage: 220v/380v/660v
  • Power(W): 5.5-37kw
  • Dimension(L*W*H): as per order
  • Weight: as per model
  • Certification: ISO9001:2008,BV,CE,SGS,TUV
  • Warranty: 12 months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Keyword: circular vibrating screen
  • Model: 2YK1235/2YK1545/3YK1545/3YK1548/4YK1548/3YK1848/4YK1848/3YK1860 etc
  • Layers No.: 1~4
  • Dimension size: 1200*3500mm-2400*6000mm
  • Max. feed size: 400mm
  • Capacity: 60-810(t/h)
  • Vibrating Frequency: 870-730 r/min
  • Double Swing: 5-9mm
  • Suitable Material: sand, coke, raw coal, coal gangue, mineral ores
  • Product name: circular vibrating screen for sieving sand

Packaging & Delivery

Packaging Details 1. standard package
2. wooden case
3. as request
China good quality multi deck circular vibrating screen for sieving sand
Delivery Time 10-30 working days after recieved prepayment
Product Description

China good quality multi deck circular vibrating screen for sieving sand

China good quality multi deck circular vibrating screen for sieving sand is a kind of new and highly effective vibrating screen that does circular vibrations and has multiple layers. Circular vibrating screen adopts cylinder postures eccentric block to produce strong exciting force. Its main body is connected by high strength screw bolts. A circular, elliptical vibration motion is created in order to sieve the materials efficiently. It is composed of screen box, screen mesh cloth, suspension (or support) device, underframe and motor.

Application:

China circular vibrating screen for sieving sand is widely used in mining, power stations, water conservancy projects, building industry, light and chemical industry, for coal dressing as well as in metallurgy. Generally, these models are built to specifically classify large, middle and small materials efficiently.

Performance and Features:

  • Ring groove rivet connections, advanced structure, strong and durable.
  • To connect sieve and the sieve beams by using high strength bolts, simple structure and convenient maintenance.

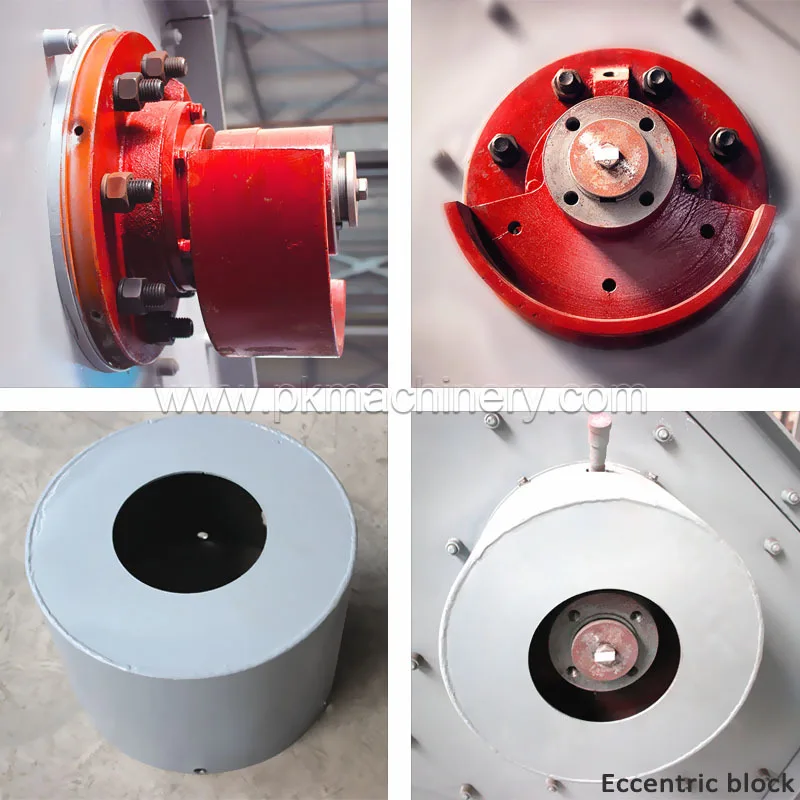

  • To use eccentric block as the excitation power, strong power, low power consumption and noise.
  • Small amplitude, high frequency, large angle structure, high screen efficiency, and high processing capacity.
  • Vibrator uses a large clearance bearings, thin oil lubrication, low noise, long service life. universal parts and easy maintenance.

Working Principle:

  • When gravel mineral circular vibrating screen on operation , first the materials will feed on the screen mesh , and the materials will separated uniformly on screen mesh plates.
  • The rolling bearing of the screen will stressed by highly mostly shock-type loads.
  • And more , the screen bearing ,while rotating about their own axis ,going a way of circular ,elliptical or linear vibrating motion .This results in high radial accelerations which additionally stress the bearings , and especially the cages considerably.
  • The operating speeds are usually in a very high condition.
  • As a result, the bearing temperatures are up to 20 to 30 degrees Kelvin higher than in normal applications.
  • In addition, considerable misalignments between the bearing locations and considerable shaft deflections have to be accommodated.

China good quality multi deck circular vibrating screen for sieving sand

Selection Conditions:

♦Material to be processed: _____♦Max. granule size of the feeding material: _____mm
♦Handling capacity (Ps. It means the total♦Layer number: ______
material capacity feeding from the inlet): _____t/h♦Mesh size of each layer: _____mm
♦Bulk Density: _____t/m3♦Particle distribution percentage:____________
♦Material temperature: _____℃;(please check the following example to help you
♦water content:____%understand it.Supposing the layer number is 2
♦Material is corrosive or not: ____ (Ps. Yes or No)and the aperture size of each layer is 10mm and 5mm,
♦Material is sticky or not: ____ (Ps. Yes or No)then you will get 3 kinds of products: X,Y and Z.
♦Working environment is indoor or outdoor: _____ X≥10mm; 5mm≤ Y < 10mm; Z<5mm.
♦Working environment temperature: ______ ℃We want to confirm the following information:
♦Upstream equipment (Ps. It means what kind of1)The percentage of X in the whole material:_____%;
equipment is used to feed the material): _____2)The percentage of Y in the whole material:_____%;
♦Downstream equipment (Ps. It means what kind of3)The percentage of Z in the whole material:_____%;)
equipment is used to discharge the material): _____♦Working power supply: _____V ______HZ

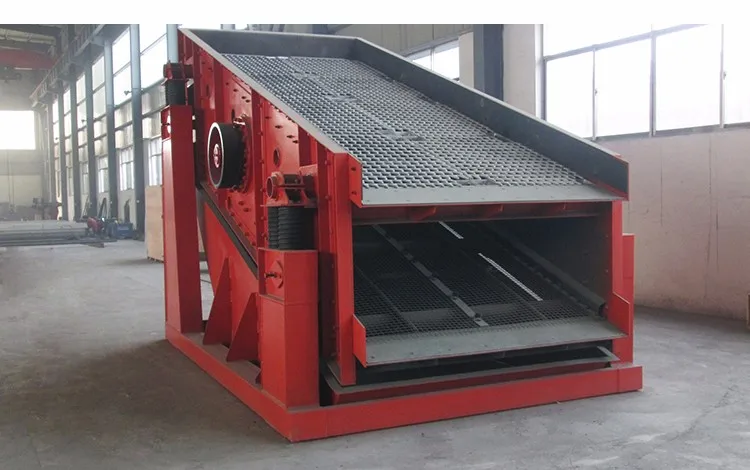

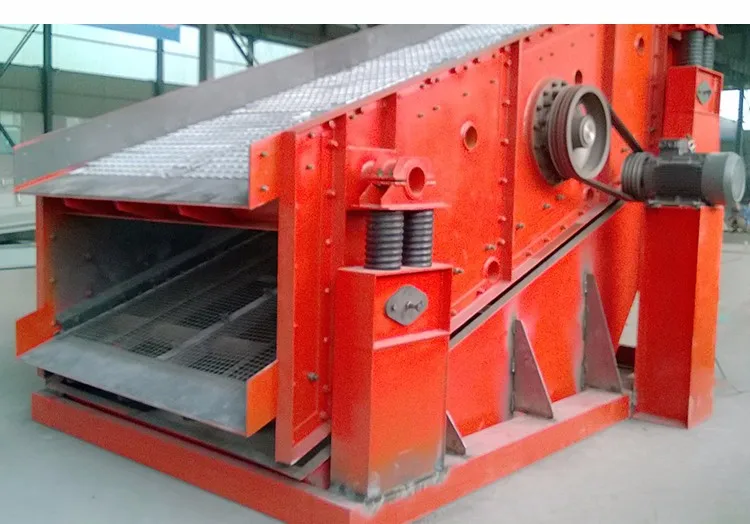

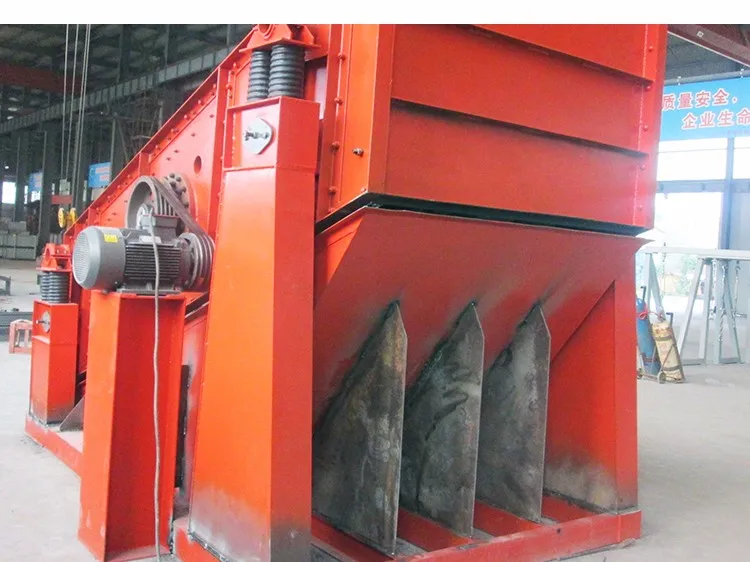

Product Show

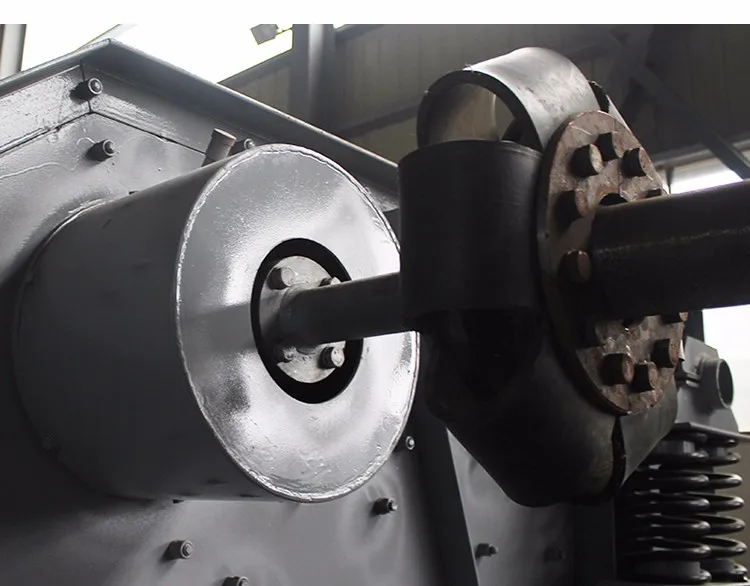

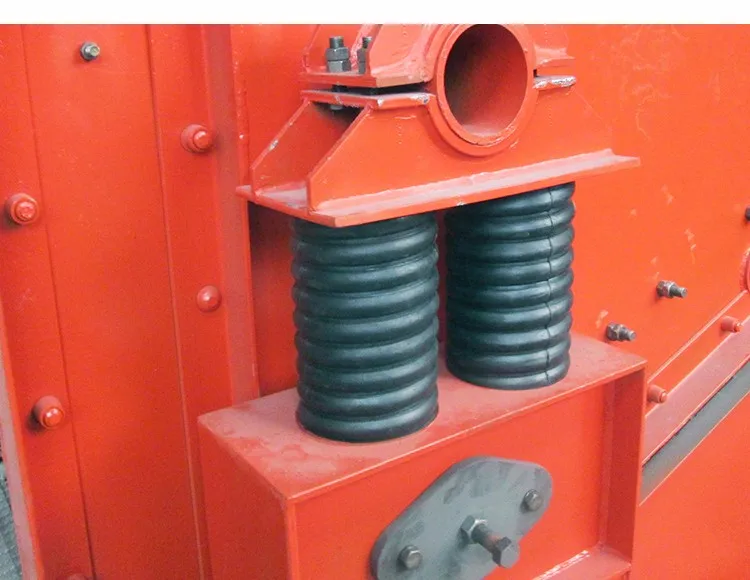

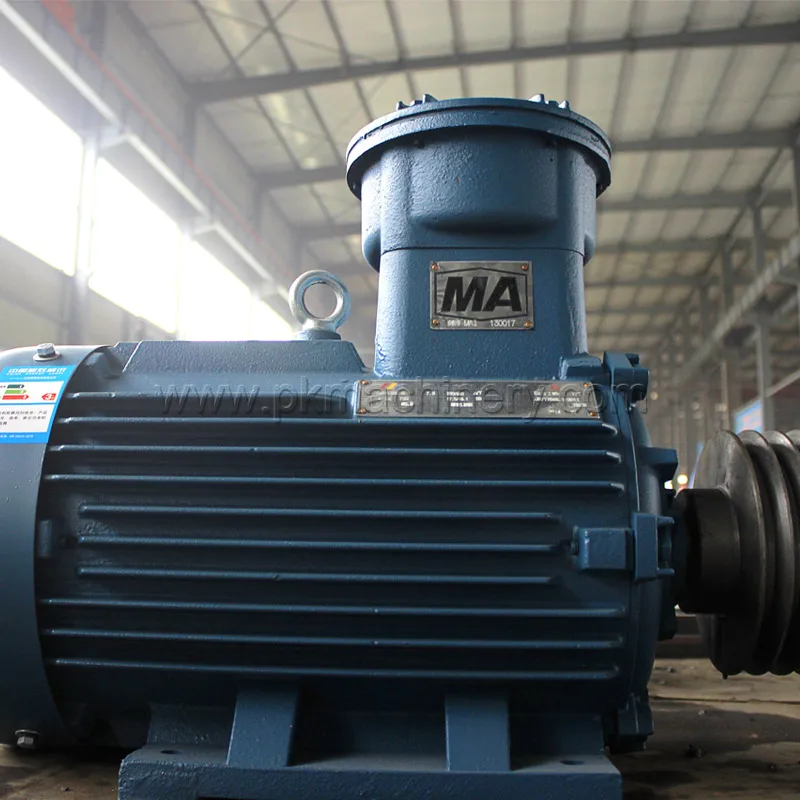

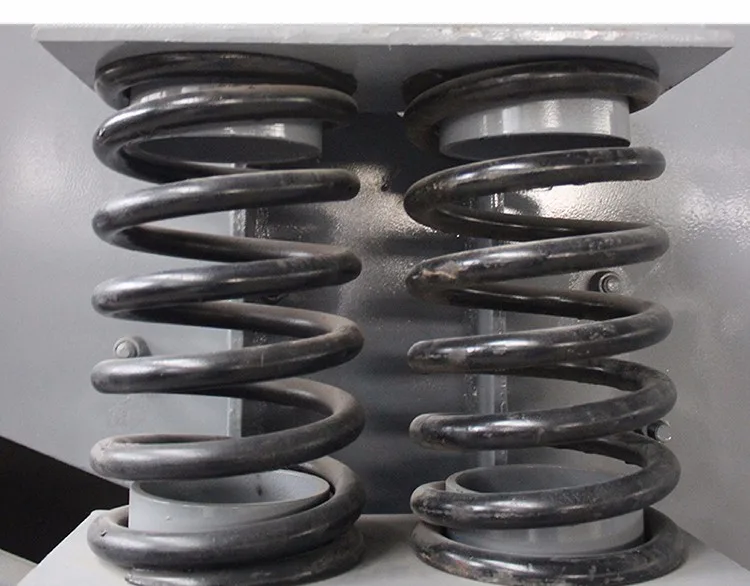

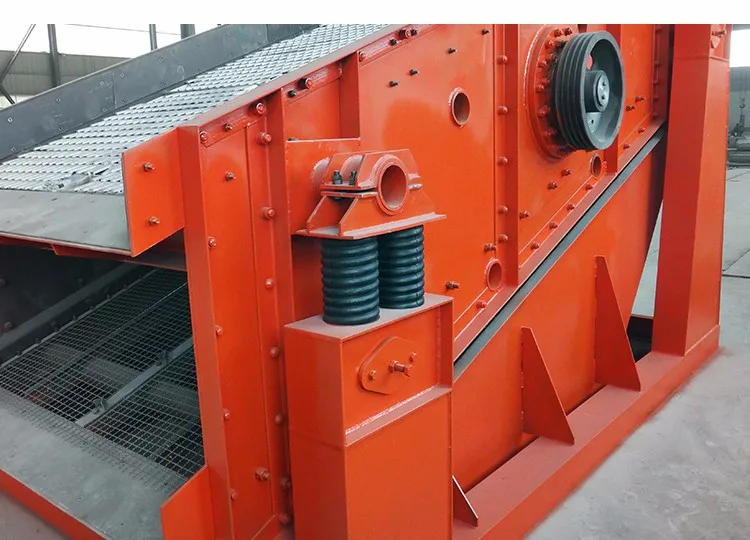

Detail Pictures
Technical Parameters

Model

Layers No.

Dimension
Size(mm)

Max. Feed
Size(mm)

Capacity(t/h)

Vibrating Frequency
(r/min)

Power
(kW)

Double Swing
(mm)

2YK1235

3

1200*3500

400

60-180

870

5.5

5-9

2YK1545

2

1500*4500

400

120-275

870

15

5-9

3YK1545

3

1500*4500

400

120-275

870

15

5-9

3YK1548

4

1500*4800

400

120-275

870

15

5-9

4YK1548

2

1500*4800

400

200-275

870

15

5-9

3YK1848

3

1800*4800

400

200-330

870

18.5

5-9

4YK1848

4

1800*4800

400

250-330

870

18.5

5-9

3YK1860

2

1800*6000

400

250-586

870

22

5-9

4YK1860

3

1800*6000

400

300-586

870

22-30

5-9

3YK2060

4

2000*6000

400

300-720

730

37

5-9

4YK2060

2

2000*6000

400

400-720

730

30-37

5-9

3YK2460

3

2400*6000

400

400-810

770

37

5-9

4YK2460

1

2400*6000

400

450-810

770

37

5-9

Note: the parameter above is just for reference,it can be customized by different requirment.
Information Needed For The Quotation

To choose the most suitable gravel mineral circular vibrating screen for you ,please provide us more detail information as the followings:

Material:

Material name:_____
Feeding size:_____mm
Material density:_____t/m3
Material distribution:_____%
Separation destination:_____

Screen machine
Capacity:_____t/h
Screen deck: _____

Particle size distribution of each layer:
Opening size:_____mm
Construction material:_____

Operation and Maintenance
  • When circular vibrating screen cannot be started or in a low amplitude, reasons are the following:
    1. Motor is damaged.
    2. Electric components controlling the circuit are damaged.
    3. Low voltage.
    4. Too many waste sundries on screen cloth.
    5. Vibration exciting goes wrong.
    6. Lubricating grease is agglomeration.
  • Reasons of abnormal flow of materials are the following:
    1. Machine body is instability as the stiffness of screen box is not enough.
    2. Circular vibrating screen screen box is horizontal deflection.
    3. Support springs are deformation or damaged.
    4. Screen cloth is damaged.
    5. Unbalanced feeding.
    6. Beam is fracture.
  • When rotating speed of screen slows down and bearings are heating, follow the below methods:
    1. Check the volume of lubricating grease in main bearing hole.
    2. Inspect whether there is blocking of bearings. Clean up in time and replace the sealing components.
    3. Check the oil in bearings.
    4. Check whether bearings are damaged or poor installation.
    5. Eccentric block on the wheel falls off, or sizes of eccentric blocks are different.
  • Check the following components if the gravel mineral circular vibrating screen noise at work:
    1. Bearing of vibration exciting.
    2. Fastening bolts.
    3. The beam.
    4. Support springs.
Maintenance Notes
  • Always keep the circular vibrating screen working in a clean and sanitary environment.
  • The bearing on both ends of the motor should be lubricated with anti- high temperature lubricating grease, in the first month, please lubricate once a week.
  • Check flange bolts on both sides of motor, the bolts which fix the mesh and the support connecting bolt shouldn’t have loose phenomenon.
  • The circular vibrating screen should be maintained every half year.
    1. Clean the motor and add grease for all lubricating points.
    2. Check the abrasion condition of screen mesh, if any damage , please maintain and replace timely.
  • The circular vibrating screen should be maintained and repaired every year.
    1. Open the motor terminal box ,check the insulation between the wires and clean the dust.
    2. Add grease on all lubricating points.
    3. Check each part of the circular vibrating screen and abrasion condition of screen mesh, if any damage please maintain and replace timely.
    4. After finishing all the work, a trial run is also required.
Packaging & Shipping

1.We can deliver China circular vibrating screen for sieving sand timely .

2.Standard packing or as per customer 's packing instruction .

3.15-30  days after receiving the deposit .

4.Different countries with different terms of payment, according to the actual situation and decide, negotiable





Company Information

Henan Pingyuan Mining Machinery Co.,Ltd  (PKmachinery) had earned many certificates about the whole strength and had cooperated with many group companies in the whole world. There is a systematized program in our company, every order will strictly according to the standard system to show our customer the best immediately.

PK machinery offers a full range of screening and conveying equipment,which involves vibrating screen,belt conveyor,bucket elevator,screw conveyor,scraper conveyor and related spare parts.What's more,PK Machinery is always cooperating with the world-class suppliers to ensure the product's high quality,including ABB,SEW,SIEMENS,etc.



As the saying goes,"there is no diamond,do not get porcelain living."

PK machinery has Sophisticated-equipment and advanced technology.

Up to now,PK machinery has already built the production lines as following: roller production line, pulley production line, automatic cutting production line, welding robots, planer milling, shear plate bending production line, steel pretreatment production line.

Our Services

1.Reply your enquiry in 24 working hours ,anytime you can contact us .

2.Provide good before-sale / after -sale services.

3.Provide Professional &technical support.

4.View our factory ,sincerely treat per customer's requirement .



If you want to know more the circular vibrating screen,kindly Click Here and send us a requirement.We can be dedicated to serve you.

 1.How long is the delivery time of your equipment?

The delivery time is within 30 working days. But when the project is very big and the customers have special requirement , the delivery could be extended ,based on different situations.

2.How long is the  equipment warranty period?

Our equipment warranty period is 1 year. Wearing parts and problem coursed by worker’s wrong operation are not included.

3.Can you give me a solution and quotation?

Absolutely sure, we can provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc.

 4.How could I trust your promise?

A:You may check the qualification on our website certified by the appraisal agency Bureau Veritas;

B:Company inspection always available.Sincerely welcome your visit.
