Quick Details

  • Condition: New
  • Type: Belt Conveyor
  • Material: Carbon steel
  • Material Feature: Heat Resistant
  • Structure: Belt Conveyor
  • Load Capacity: Large Capacity
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: PK
  • Model Number: DTII belt conveyor system
  • Voltage: 380,400,480,600 V or other
  • Power(W): customized
  • Dimension(L*W*H): as per the model
  • Certification: ISO9001:2008, BV, SGS, CE,TUV
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Model Name: belt conveyor system
  • Belt Width: 500/650/800/1000/1200/1400mm
  • Belt Material: Rubber, PVC, Nylon, steel wire
  • Applicable Material: Sand,stone,coke,coal,cement,concrete,aggregates,limestone,carbon black
  • Driven device: Motor, reducer, Motorized pulley
  • Tension device: Screw tension, hammer tension
  • Discharge device: Discharge chute
  • Sweeper: Head sweeper, return sweeper
  • Installation: Ground bolt or embedded steel plate
  • Auxiliary device: Anti- rain, dust cover, head cover

Packaging & Delivery

Packaging Details standard export package(wooden case or pallet)or as your requests
Delivery Time Shipped in 2 days after payment
Product Description

Supply stainless steel belt conveyor system

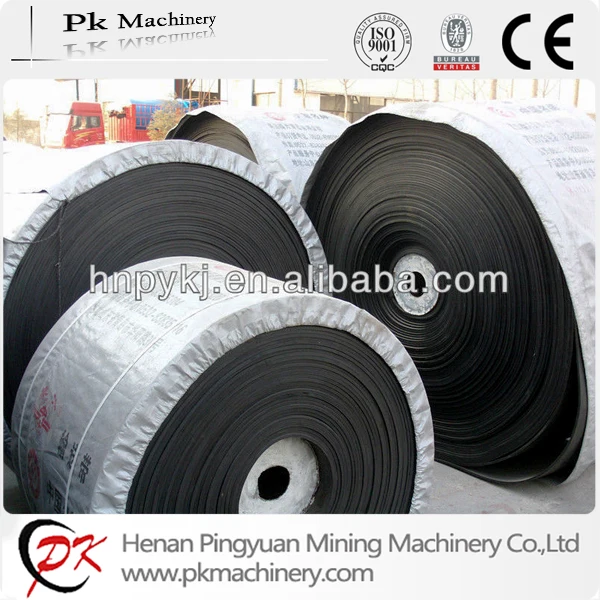

Belt:

Belt is used for moving and supporting surface on which the conveyed material rides. It is the tractive element. The type of belt used need to depend on the nature of materials to be transported.

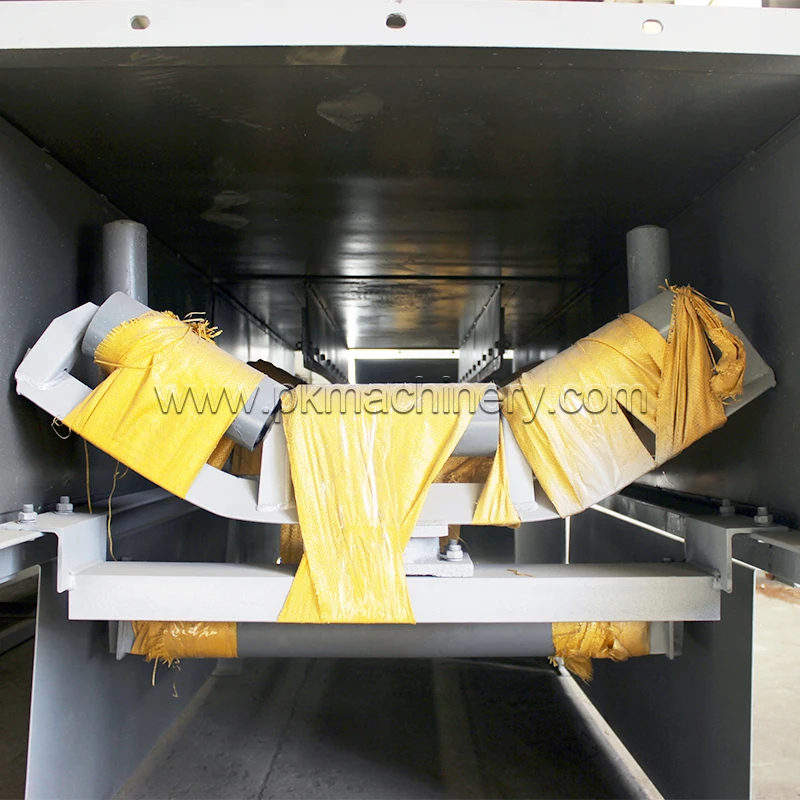

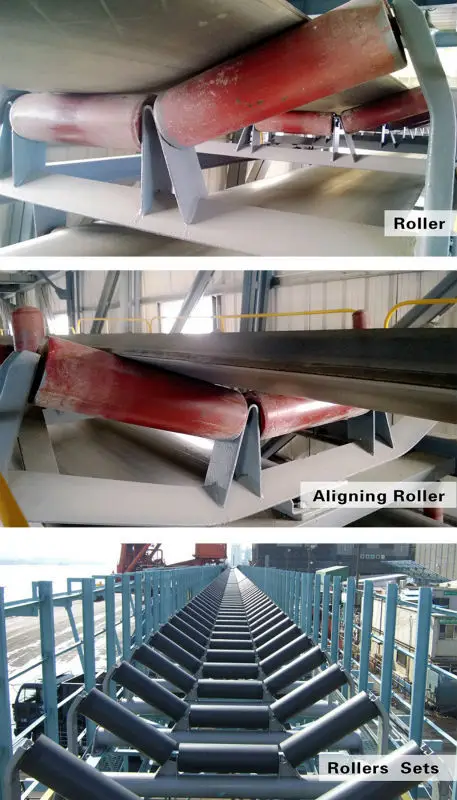

Idler:

Idlers are the supports for the carrying and return stands of the belt.

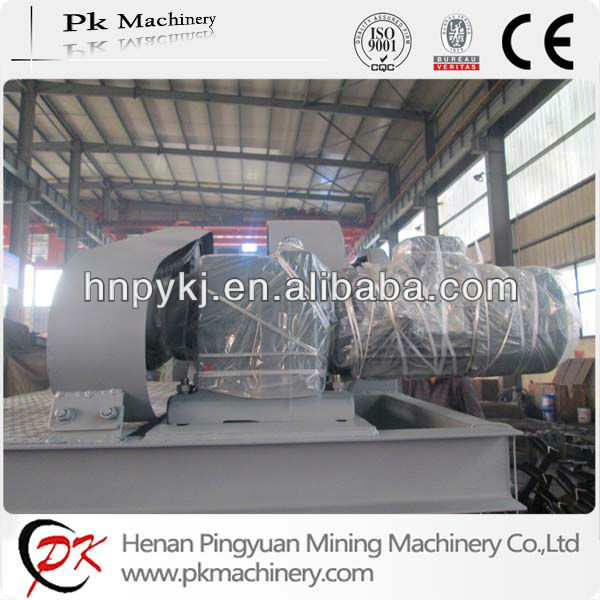

Drive:

Drive that imparts power to one or more pulleys to move the belt and its loads.

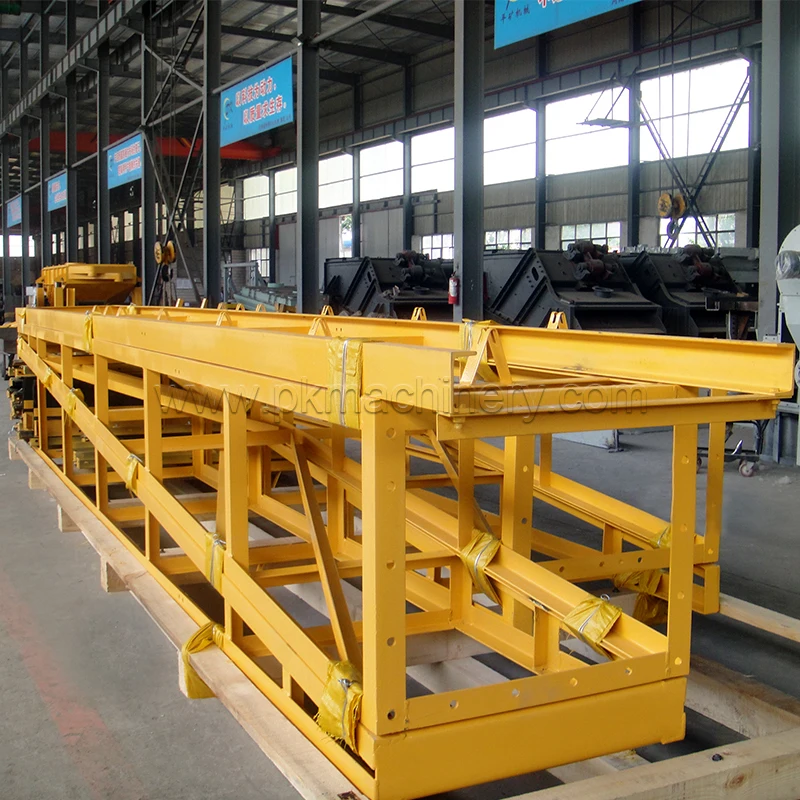

Structure:

Structure is the support and maintains the alignments of the idlers and pulleys. Besides, it also supports the driving machinery.

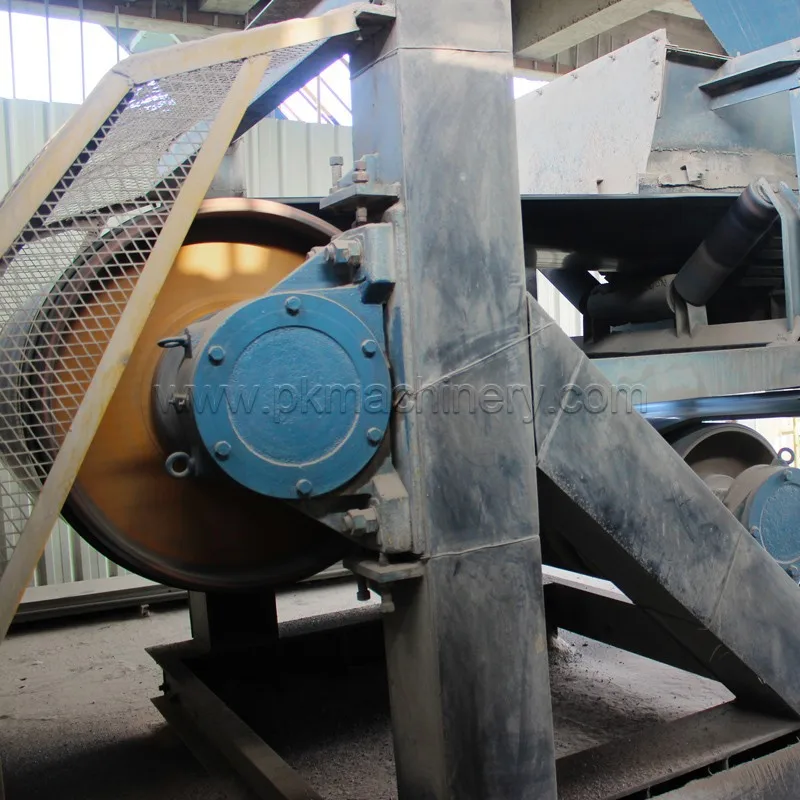

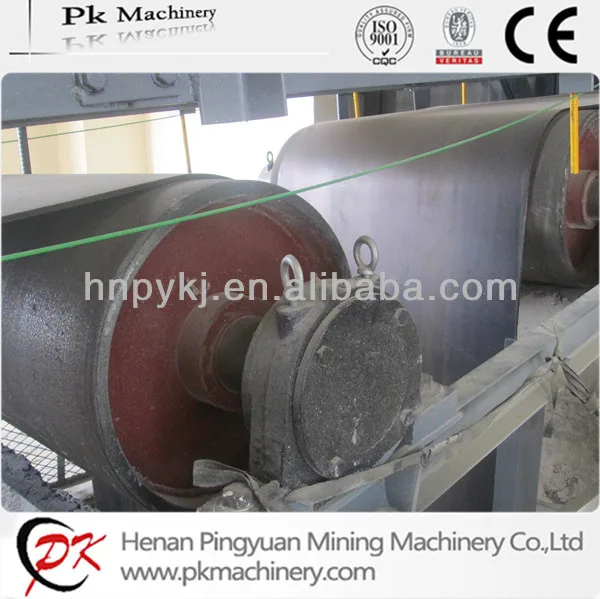

Pulley:

A conveyor belt system uses different types of pulleys like end pulley, snub pulley, bend pulley etc. The end pulleys are used for driving and sometimes for making tensioning arrangements. Snub pulleys increase the angle of wrap thereby increasing the effective tension in the belt. The pulley diameter depends on the belt width and belt speed. Pulleys are used for providing the drive to the belt as well as for maintaining the proper tension to the belt.

Performance and features as follow:

  • Large conveying capacity
  • Long conveying distance
  • Low horsepower compared with other types of conveyor
  • Low cost of operating and maintenance
  • Stable performance and reliable operation
  • High universality and easy maintenance
  • Labour saving
  • No product degradation during conveying process
  • Conveyor can have changes in elevation (horizontal, inclined or combination)
  • Weight belt section can be added for continuous product weighing
  • Belt conveyors can pivot at one end allowing the discharge to be moved over an arc (radial stacking).
Working Principle:

Supply stainless steel belt conveyor system is composed by two endpoint pulleys and a closed conveyor belt. The pulley that drives conveyor belt rotating is called drive pulley or transmission drum; the other one-only used to change conveyor belt movement direction-is called bend pulley. Drive pulley is driven by the motor through reducer, and conveyor belt dragging relies on the friction drag between the drive pulley and the conveyor belt. The drive pulleys are generally installed at the discharge end in order to increase traction and be easy to drag. Material is fed on the feed-side and landed on the rotating conveyor belt, then rely on the conveyor belt friction to be delivered to discharge end.

We mainly provide the following belt conveyors (Conveying equipment) :

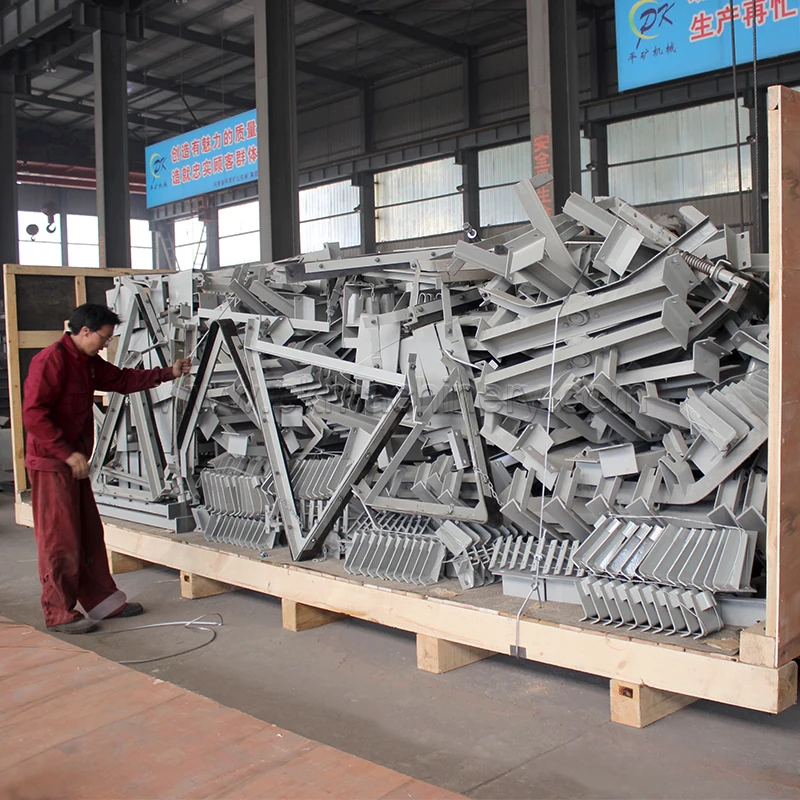

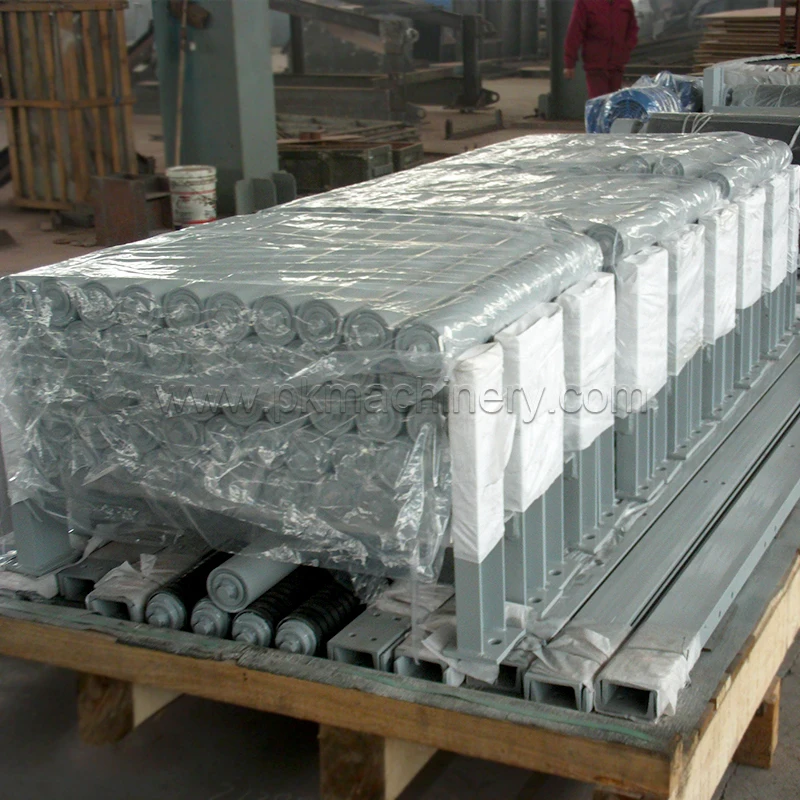

Packaging & Shipping
1. Export Packing (wooden case or pallet)
2. Sea Transportation (packaged in 20GP/40GP/40HQ container)

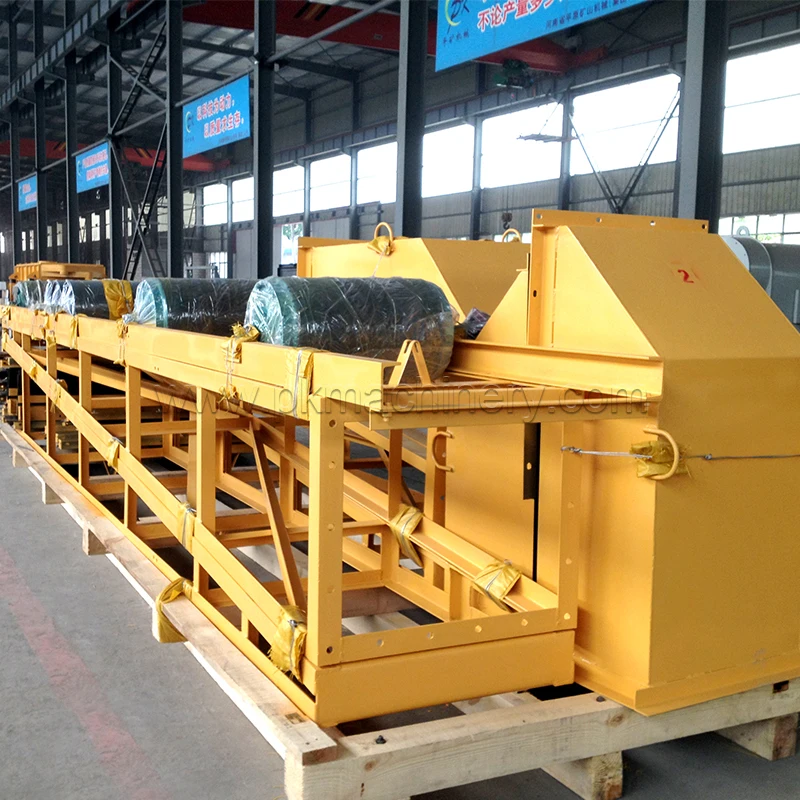

Product Show
Detail Pictures
Technical Parameters

Roller form

Transmission

speed(m/s)

Belt width(mm)

500

650

800

1000

1200

1400

Capacity(m3/h)

Trough idler

0.8

78

130

--

--

--

--

1.0

97

164

278

435

655

891

1.25

122

206

348

544

821

1115

1.6

156

264

445

696

1048

1427

2.0

191

323

546

853

1284

1748

2.5

232

391

664

1033

1556

2118

3.15

--

--

824

1233

1858

2528

4.0

--

--

--

--

2202

2996

Flat idler

0.8

41

67

118

--

--

--

1.0

52

88

147

230

345

469

1.25

66

110

184

288

432

588

1.6

84

142

236

368

558

753

2.0

103

174

289

451

677

922

2.5

125

211

350

546

821

1117

Note: the parameter above is just for reference,it can be customized by different requirment.
Information Needed For The Quotation
1. What is the conveying material and its physical characteristics? such as bulk density, feeding size, temperature, mositure content etc.
2. What is the processing capacity of the elevator?
3. What is the lifting height of the elevator (distance between inlet and outlet)?



Latest Export News
Belt Conveyors And Vibrating Screens Are Ready For Delivery
On 29th May, linear vibrating screens, rotary vibrating screens and belt conveyors ordered by our Thailand client are ready for delivery. The screens are used for drying sand screening line, the belt conveyors with length 5m,9m,11m are used for feeding materials to the screens.
We are sure client will be satisfied with our products and we do believe we can establish long-term business relationship and redound to our mutual benefit!
PK Machinery offer the widest range of belt conveyor, bucket elevator, screw conveyor, vibrating screen etc. applied to different industries .With rich design experience and professional service ,we are sure PK Machinery is the best choice !Welcome to contact us if you are interest in our products.
Henan Pingyuan Mining Machinery Co.,Ltd.
Company Information

Henan Pingyuan Mining Machinery Co.,Ltd  (PKmachinery) had earned many certificates about the whole strength and had cooperated with many group companies in the whole world. There is a systematized program in our company, every order will strictly according to the standard system to show our customer the best immediately.

PK machinery offers a full range of screening and conveying equipment,which involves vibrating screen,belt conveyor,bucket elevator,screw conveyor,scraper conveyor and related spare parts.What's more,PK Machinery is always cooperating with the world-class suppliers to ensure the product's high quality,including ABB,SEW,SIEMENS,etc.



As the saying goes,"there is no diamond,do not get porcelain living."

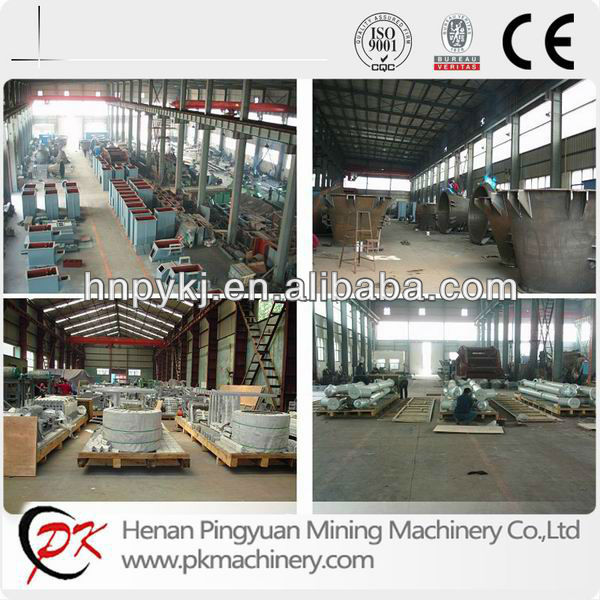

PK machinery has Sophisticated-equipment and advanced technology.

Up to now,PK machinery has already built the production lines as following: roller production line, pulley production line, automatic cutting production line, welding robots, planer milling, shear plate bending production line, steel pretreatment production line.



FAQ

1.How long is the delivery time of your equipment?

The delivery time is within 30 working days. But when the project is very big and the customers have special requirement , the delivery could be extended ,based on different situations.

2.How long is the  equipment warranty period?

Our equipment warranty period is 1 year. Wearing parts and problem coursed by worker’s wrong operation are not included.

3.Can you give me a solution and quotation?

Absolutely sure, we can provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc.

 4.How could I trust your promise?

A:You may check the qualification on our website certified by the appraisal agency Bureau Veritas;

B:Company inspection always available.Sincerely welcome your visit.
