Quick Details

  • Condition: New
  • Type: Bucket Conveyor
  • Material: Stainless Steel
  • Material Feature: Fire Resistant
  • Structure: Conveyor System
  • Load Capacity: 9-238m³/h
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: PK
  • Model Number: TD belt type grain bucket elevator
  • Voltage: variable
  • Power(W): as per the model
  • Dimension(L*W*H): as per the model
  • Certification: CE ISO9001:2008 BV SGS TUV
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Model: TD160/TD250/TD315/TD400
  • Keyword: grain bucket elevator
  • Bucket width: 160-500mm
  • Bucket volume: 0.5-23.5L
  • Belt width: 160-700mm
  • Motor power: 1.5-160kw
  • Max feed size: 165mm
  • Spare part: Supply the whole year
  • Motor brand: ABB, SEW or customized
  • Name: grain bucket elevator

Packaging & Delivery

Packaging Details grain bucket elevator's package
1. seaworthy
2. standard export package
3. wooden case
4. container
5. or as request
Delivery Time 15-35 working days after we receive the deposit
Product Description

Best price china belt type lifting machine sugar grain bucket elevator for sale

Best price china belt type lifting machine sugar grain bucket elevator for sale is designed for transporting vertically for granular, powder and small block of grinding suction smaller disperses the shape material, such as food, coal, cement, ore, etc. The hoisting height highest 40 MB, Material temperature doesn't exceed 60°C.. TD type according to JB3926-85 "vertical bucket standard of design and manufacture, the current domestic common bucket is vertical, a novel. TD type grain bucket with four hopper Q type (shallow type), H (arc), and the measures of type (lh-zd type (SD) fights deep type).
Best price china belt type lifting machine sugar grain bucket elevator for sale is a kind of vertical conveying machine which is specially for conveying grain, feed, seed,flour and starch, etc. TDTG grain bucket elevator has such kind of advantages: Small occupation area, Large capacity, lower power consumption. The series grain bucket elevator is developped by introducing the advanced technology of the same type at home and abroad, which is widely used for conveying all kind of granule material vertically.
Application:

Best price china belt type lifting machine sugar grain bucket elevator for sale is used for transferring the materials in form of powder, granular, small block non-abrasive, half-abrasive with bulk density less than 1.5t/m3, such as coal, cement, gravel, sand, fertilizer and grain etc.

Performance and Features:

1.Low driving power, inflow feeding, induction unloading, high-volume hopper intensive arrangement. There is almost no feed back and excavating circumstance when materials are lifted, so invalid power is little.

2.Wide lifting range, little materials type and property requirement can not only lift general powder and granule materials, but also lift high polishing materials. Sound seal and little circumstance pollution.

3.Grain bucket elevator has good running reliability, the advanced design principle and handling method assure reliability of whole machine running, the non-fault time exceed 20 thousand hours. Stable running make it reach higher lifting height.

4.The life is long, inflow feeding, non excavating with hopper and there is few extrusion and collision circumstance between materials. There is little materials sprinking during feeding and discharging to reduce machinery abrasion.

5.Wide application grain bucket elevator as one of material handling equipment is used in powder, graininess and patch delivering upward unpolishing and subpolishing scattered materials whose density is less than 1.5t/m³, such as coal, grail, dust coke,grain.

Working Principle:

While grain bucket elevator is energized, the driving device drives pulley to make the bucket belt doing the circular motion from bottom to up.

The bucket is filled with material and is conveyed to the head terminal, and then the material is thrown from the outlet under the action of centrifugal force according to the Parabolic design. After discharging, the empty bucket is back to the boot by conveying and be filled again, and then lifted up to do parabolic motion such repeated cycle. The material is lifted from bottom to the top to the specified height to reach conveying vertically.



Packaging & Shipping

1.We can deliver grain bucket elevator timely .

2.Standard packing or as per customer 's packing instruction .

3.15-30  days after receiving the deposit .

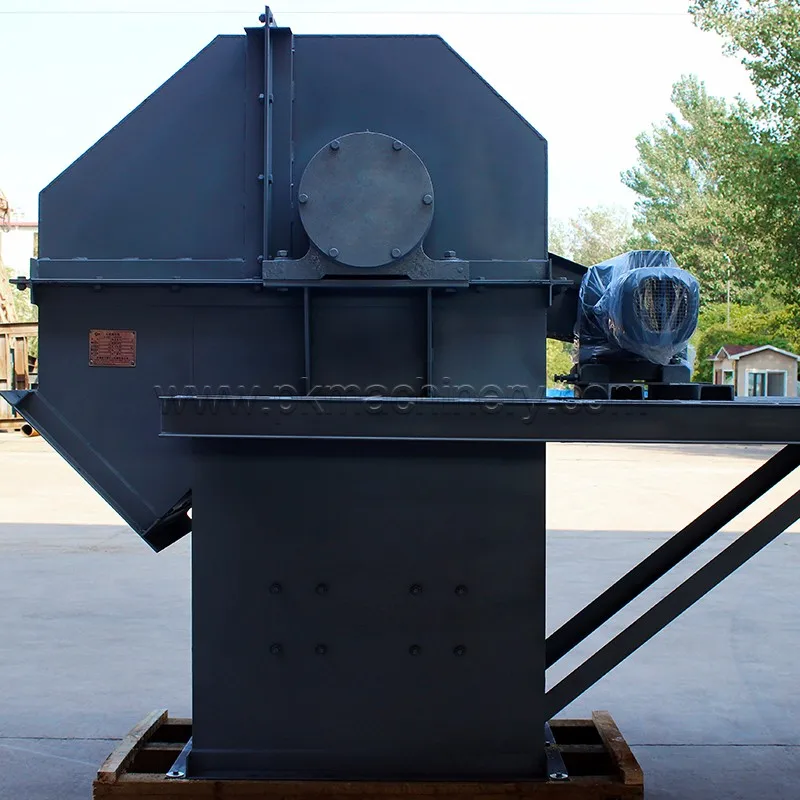

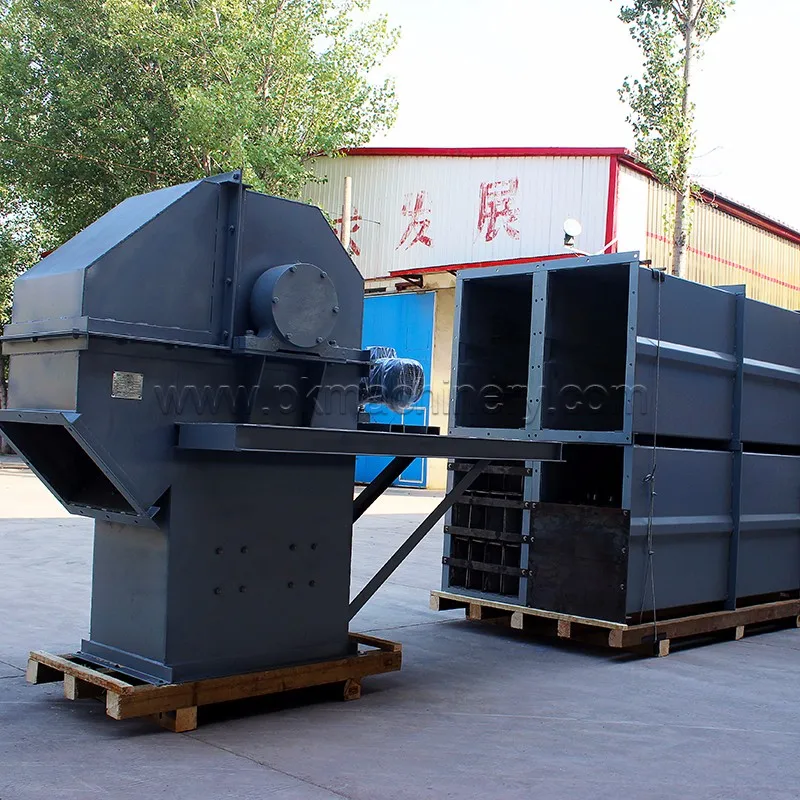

Product Show

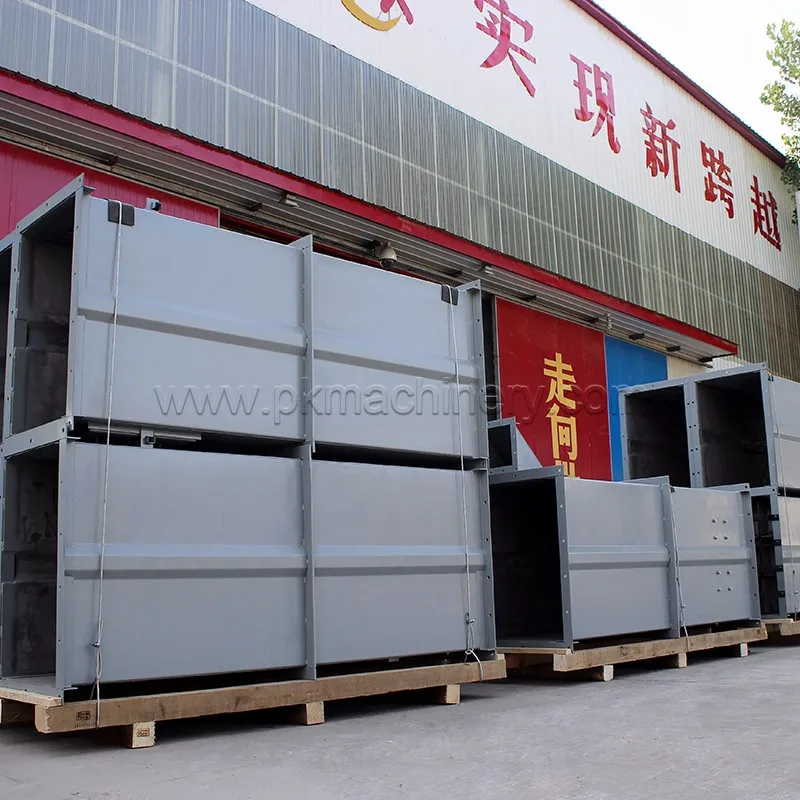

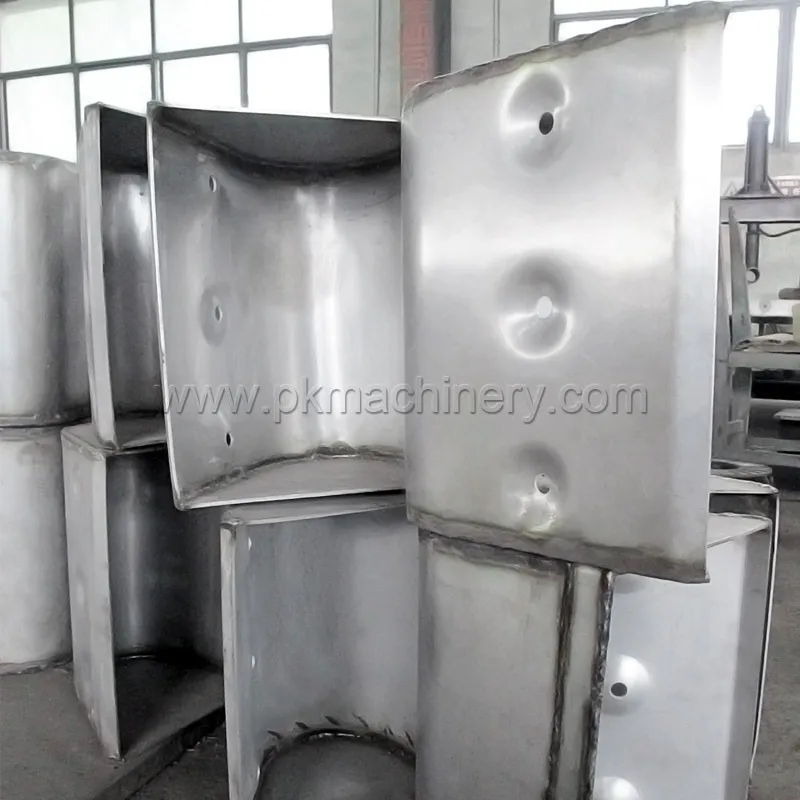

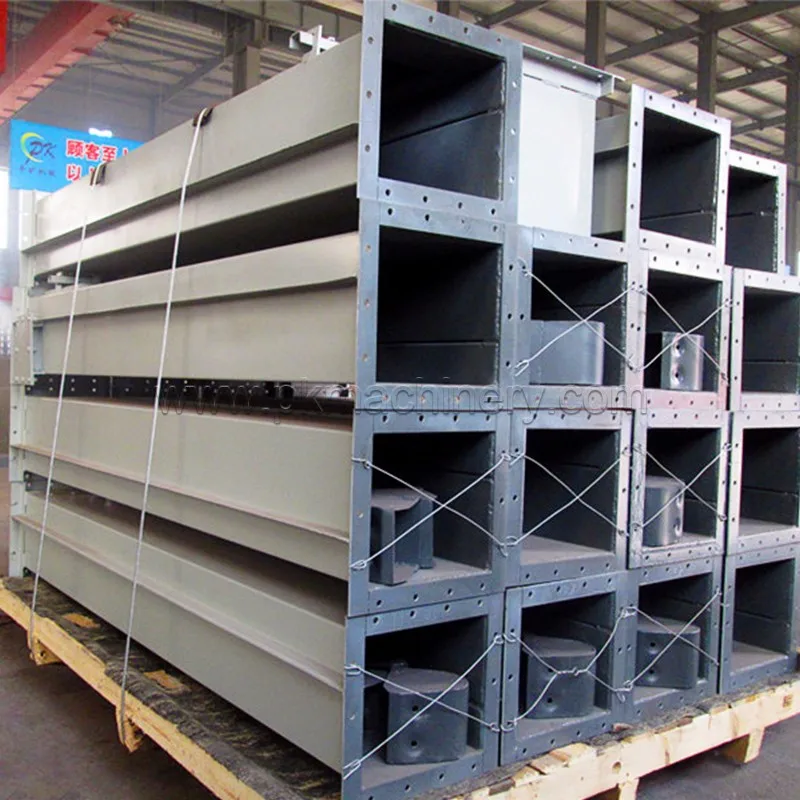

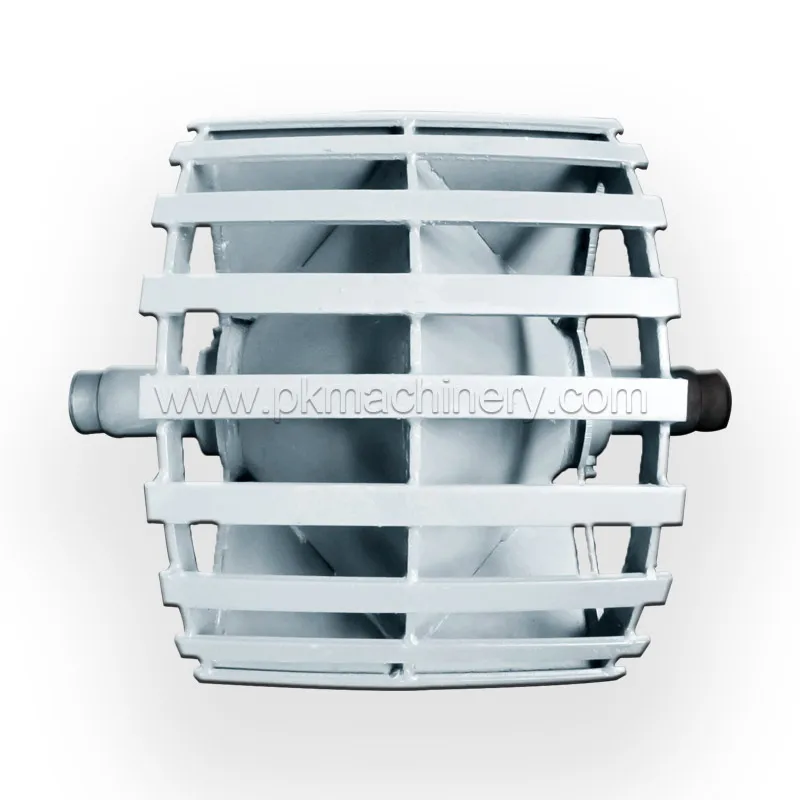

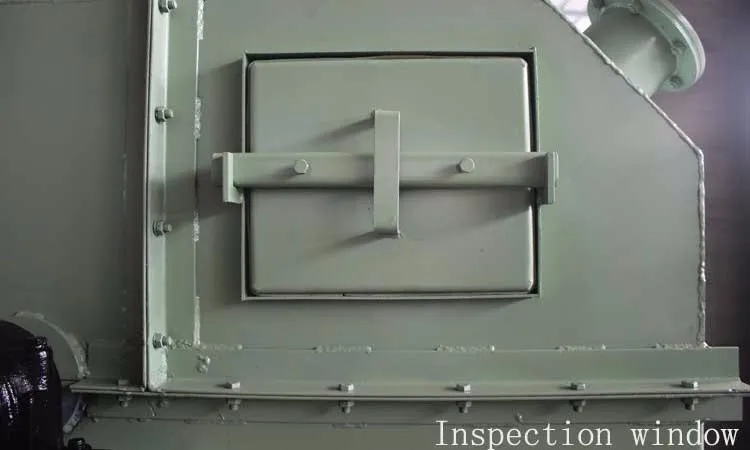

Detail Pictures


Technical Parameters
ModelTD160TD250TD315TD400
Bucket typeQHZdSdQHZdSdQHZdSdQHZdSd
Capacity (m3/h)91616272036385928504267407668110
Bucket width(mm)160250315400
Bucket volume(L)0.50.94.21.91.32.234.623.63.85.83.15.65.99.4
Belt Width (mm)200300400500
ModelTD500TD630
Bucket typeQHZdSdQHZdSd
Capacity (m3/h)6311696154_142148238
Bucket width(mm)500
Bucket volume(L)4.8499.314.9_1414.623.5
Belt Width (mm)600700
Note: the parameter above is just for reference,it can be customized by different requirment.
Information Needed For The Quotation
  1. What is the conveying material and its physical characteristics? such as bulk density, feeding size, temperature, mositure content etc.
  2. What is the processing capacity of the grain bucket elevator?
  3. What is the lifting height of the grain bucket elevator (distance between inlet and outlet)



Latest Export News
Conveyors Designed for Pakistan Soda Ash Plant were Finished Production
Project name: Dense ash plant expansion project Equipment name ,model and quantity:11 units of MS320 scraper conveyor,3 units of TB250 Bucket elevator,4 units of LS315 screw conveyor.
After three months’ production, scraper conveyor, bucket elevator and screw conveyor designed for Pakistan soda ash plant finally have been finished.
Henan Pingyuan Mining Machinery Co.,Ltd.




Company Information

Henan Pingyuan Mining Machinery Co.,Ltd  (PKmachinery) had earned many certificates about the whole strength and had cooperated with many group companies in the whole world. There is a systematized program in our company, every order will strictly according to the standard system to show our customer the best immediately.

PK machinery offers a full range of screening and conveying equipment,which involves vibrating screen,belt conveyor,grain bucket elevator,screw conveyor,scraper conveyor and related spare parts.What's more,PK Machinery is always cooperating with the world-class suppliers to ensure the product's high quality,including ABB,SEW,SIEMENS,etc.



As the saying goes,"there is no diamond,do not get porcelain living."

PK machinery has Sophisticated-equipment and advanced technology.

Up to now,PK machinery has already built the production lines as following: roller production line, pulley production line, automatic cutting production line, welding robots, planer milling, shear plate bending production line, steel pretreatment production line.

Our Services

1.Reply your enquiry in 24 working hours ,anytime you can contact us .

2.Provide good before-sale / after -sale services.

3.Provide Professional &technical support.

4.View our factory ,sincerely treat per customer's requirement .



If you want to know more the grain bucket elevator,kindly Click Here and send us a requirement.We can be dedicated to serve you.



FAQ

1.How long is the delivery time of your equipment?

The delivery time is within 30 working days. But when the project is very big and the customers have special requirement , the delivery could be extended ,based on different situations.

2.How long is the  equipment warranty period?

Our equipment warranty period is 1 year. Wearing parts and problem coursed by worker’s wrong operation are not included.

3.Can you give me a solution and quotation?

Absolutely sure, we can provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc.

 4.How could I trust your promise?

A:You may check the qualification on our website certified by the appraisal agency Bureau Veritas;

B:Company inspection always available.Sincerely welcome your visit.

Selection Conditions

We have someone who can guide you to know more about the grain bucket elevator .

CLICK HERE.  Kindly send us your requirement.

♦Material to be processed: _____♦Max. granule size of the feeding material: _____mm

♦Handling capacity (Ps. It means the total material

capacity feeding from the inlet): _____t/h



♦Layer number: ______

♦Bulk Density: _____t/m3♦Mesh size of each layer: _____mm
♦Material temperature: _____℃;♦Particle distribution percentage:______
♦water content:____%We want to confirm the following information:
♦Material is corrosive or not: ____ (Ps. Yes or No)1)The percentage of X in the whole material:_____%;
♦Material is sticky or not: ____ (Ps. Yes or No)2)The percentage of Y in the whole material:_____%;
♦Working environment is indoor or outdoor: _____3)The percentage of Z in the whole material:_____%;)
♦Working environment temperature: ______ ℃♦Working power supply: _____V ______HZ

♦Upstream equipment (Ps. It means what kind of

equipment is used to feed the material): _____

♦Downstream equipment (Ps. It means what kind of equipment is used to discharge the material): _____
