Quick Details

  • Condition: New
  • Type: scraper conveyor
  • Material: Carbon steel, stainless steel, Hot-dip galvanized steel plate
  • Material Feature: wear resistant, durable
  • Structure: Chain Conveyor, Chain Conveyor
  • Load Capacity: large capacity
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: PK
  • Model Number: MS drag chain conveyor
  • Voltage: 380 , 400 or requirement
  • Power(W): variable
  • Dimension(L*W*H): as per the model
  • Certification: ISO9001:2008, BV, SGS, CE, TUV
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Model: MS16/MS20/MS25/MS32/MS40/MS50
  • Chtue width: 160-500mm
  • Transport speed: 0.16m/s,1.20m/s,0.25m/s,0.32m/s
  • Bulk density: 0.2-1.8t/m3
  • Conveyor length: 10-80m
  • Installation angle: 0-30 degree
  • Color: grey, white, black, green or customized
  • Application: Mining, Metallurgy, Cement, Grain or Others
  • Name: drag chain scraper conveyor

Packaging & Delivery

Packaging Details 1. standard package of scraper conveyor
2. wooden case
3. as request
MS Drag Chain Scraper Conveyor for Bulk Material
Delivery Time Shipped in 1 days after payment
Product Description

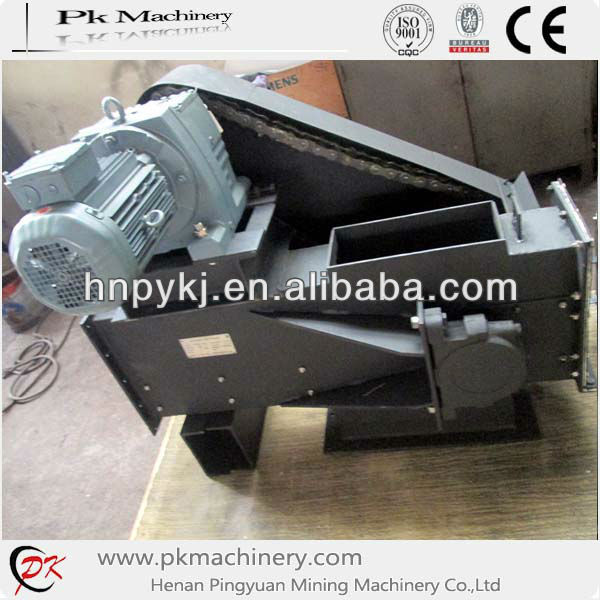

MS Drag Chain Scraper Conveyor for Bulk Material

MS Drag Chain Scraper Conveyor for Bulk Material is bulk material conveying equipment, which consists of head section with driving device, connect section, tail section, tension device, as well as scraper and chains. By means of moving chains, it can continuously transport the materials in closed rectangular casing horizontally or at a slight incline.
Application:

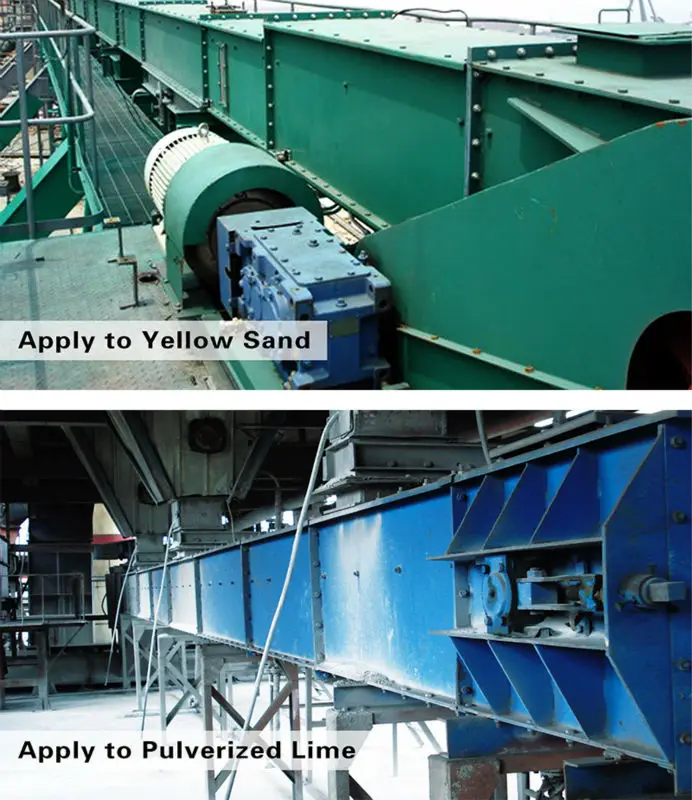

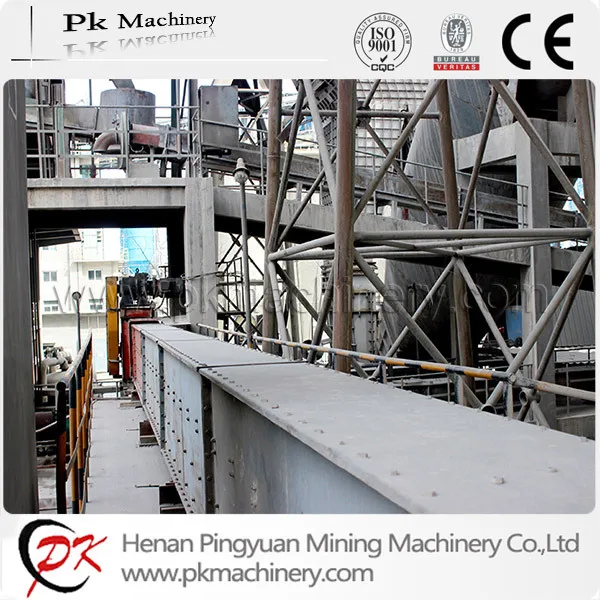

MS Drag Chain Scraper Conveyor for Bulk Material is widely used in cement plant, coal, metallurgy, mining, light, construction, chemical, grain, power industries etc.

Performance and features as follow:

  • Totally enclosed structure, light weight, small volume.
  • Convenient installation and maintenance.
  • Horizontal or slightly inclined transport from 0 degree to 30 degree.
  • Multiple material feeding point and discharging point.
  • Scraper conveyor's conveying distance is up to 80m with material temperature lower than 120 C
Working Principle:

When chain scraper conveyor transports horizontally, the pressure which comes from chains in conveying direction to the materials, and the action which comes from the materials themselves cause internal friction. This friction ensures the stable situation between material layers, and it can overcome external frictional resistance which caused by moving materials in the trough and make materials transport as a whole fluid.

We mainly provide the following scraper conveyors (conveying equipment) :



Packaging & Shipping

1.We can deliver scraper conveyor timely.

2.Standard packing or as per customer 's packing instruction .

3.15-30  days after receiving the deposit .

4. Export Packing (wooden case or pallet).
5. Sea Transportation (packaged in 20GP/40GP/40HQ container).

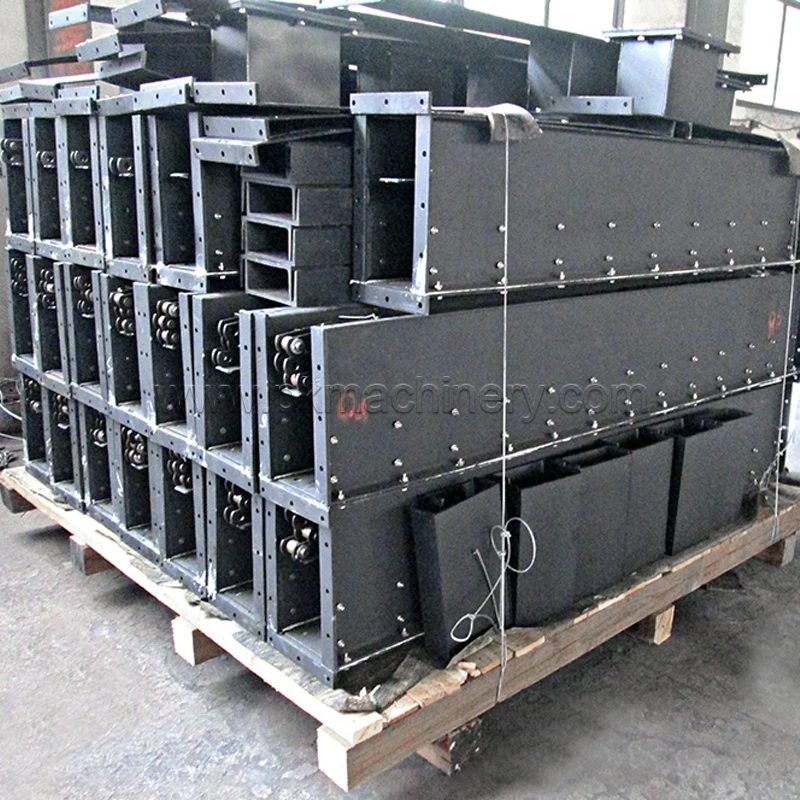

Product Show
Detail Pictures

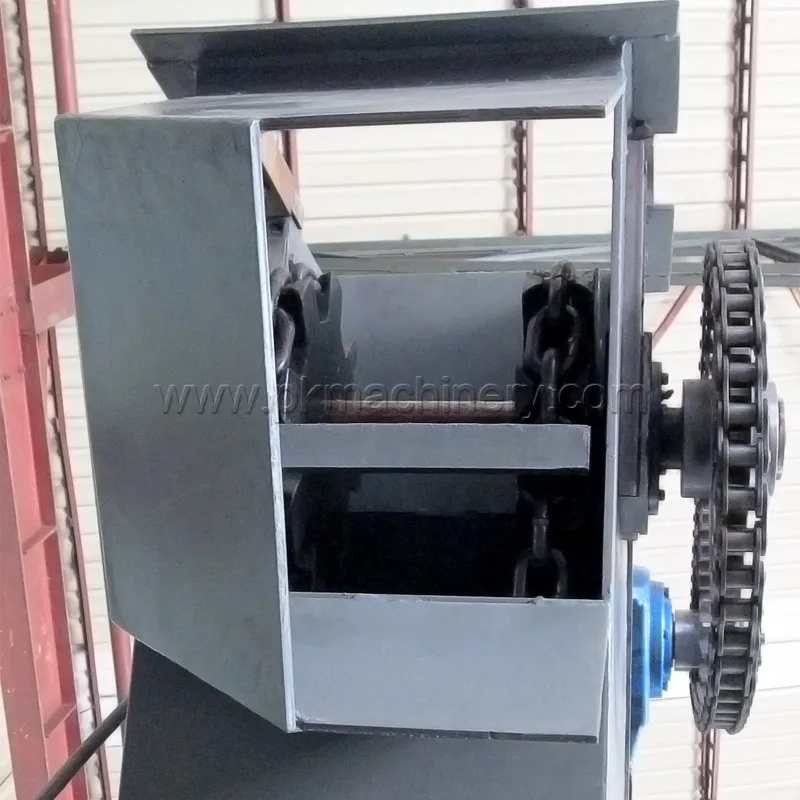

  • Head Section

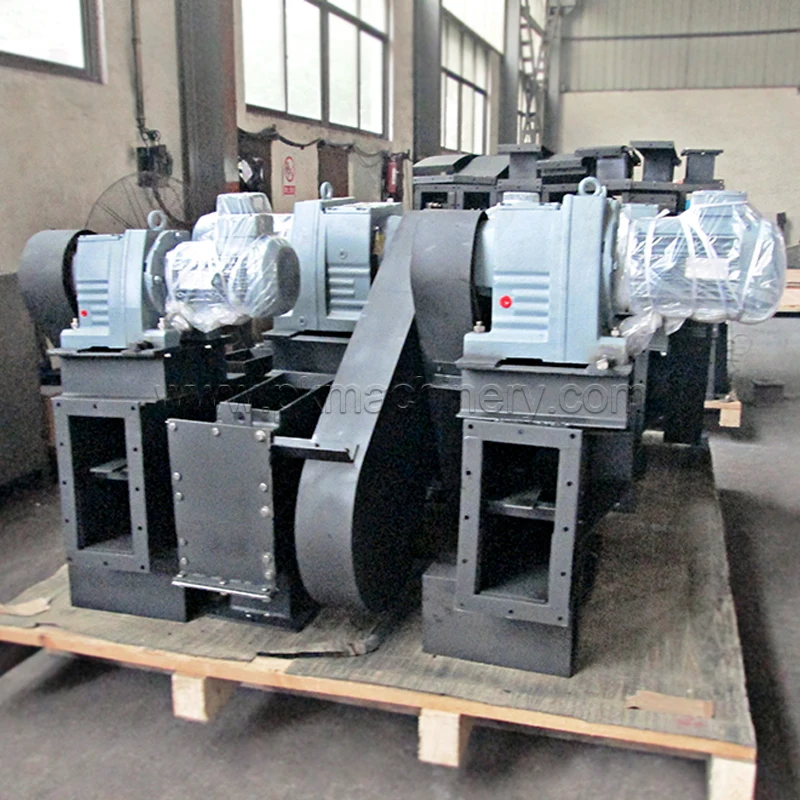

  • Middle Section

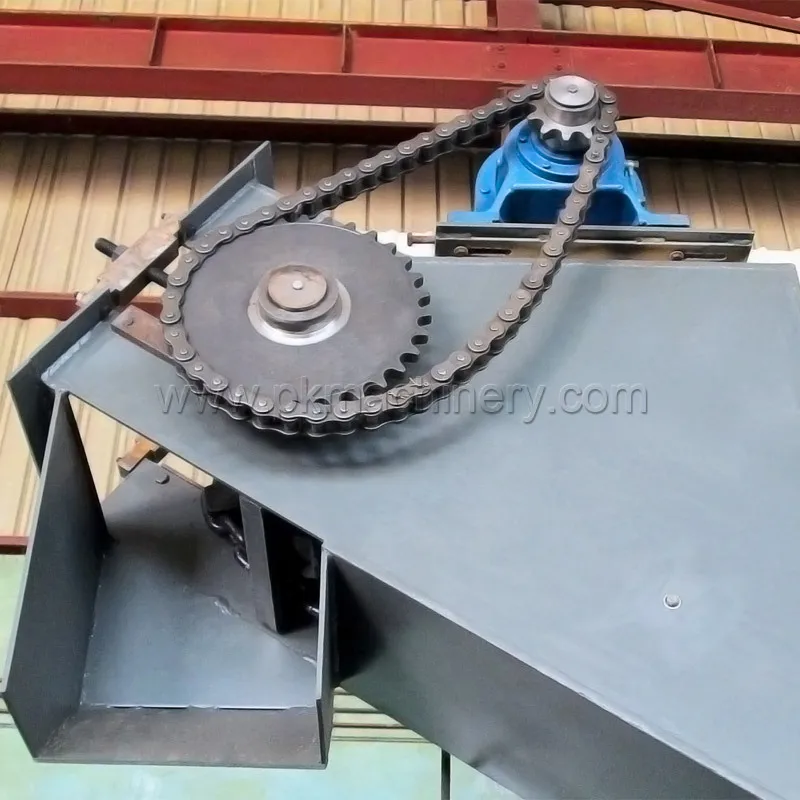

  • Tail Section

  • Conveying Chain

Technical Parameters

Model

MS 16

MS 20

MS 25

MS 32

MS 40

MS 50

Chute Width (mm)

160

200

250

320

400

500

Transport Speed (m/s)

0.16 m/s,  0.20 m/s,  0.25 m/s,  0.32 m/s

Bulk Density (t/m3)

0.2~1.8 t/m3

Capacity (m3/h)

15~29

23~46

36~72

59~118

83~166

115~230

Conveyor Length (m)

10~80m

Installation Angle (degree)

0°~30°

Note: the parameter above is just for reference,it can be customized by different requirment.
Information Needed For The Quotation
  • Material need to be processed_____?
  • Feeding size____mm, bulk density____t/m3, material temperature_____degree ?
  • Processing capacity____t/h ?
  • Conveying length(distance between inlet and outlet)_____m?
  • Inclination angle of conveyor______degree?



Analysis of Common Trouble
  • Scraper chain gets stuck or chain falls off: make sure all components are fastened completely; replace scraper timely; adjust the tension of the chain properly; chain should be classified as per the use of time, wear and tear status, prevent using them together which are worn in different conditions; remove the large miscellaneous materials timely; do not over bend the conveyor when push the scraper conveyor body; the base should be flat to prevent chain getting stuck.
  • Scraper chain breaks: strict quality control; adopt high-quality scraper chain; strengthen routine maintenance, remove the damaged and deformed parts promptly; remove sides of sundries; replace excessively serious wear and corrosion parts; broken chain should be replaced in time.
  • Scraper conveyor overload: strengthen management in accordance with the standard maintenance strictly; conveyor should be avoided being buried by materials. Strengthen technical education of operators, make sure they fully grasp the conveyor performance.



How to Maintain and Repair
  • It is necessary to ensure that all pins and pin screws are fastened in place before using scraper chain conveyor. The tension of pin and the required torque, must be regularly checked and keep maintenance records;
  • In order to keep it running in good condition, please check and measure it periodically. Once scraper chain slack is found, or abnormal sound of guide rail rack hitting , please adjust the tension of chain in time;
  • When replace the chain, ensure the chain with the chain joints can move freely;
  • Check whether the head of scraper chain conveyor parts deformation or falls off or not.
