Quick Details

  • Condition: New
  • Type: screw conveyor
  • Material: Stainless Steel
  • Material Feature: Fire Resistant
  • Structure: Conveyor System
  • Load Capacity: 120t/h
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: PK
  • Model Number: LSY flexible screw conveyor
  • Voltage: Requirement
  • Power(W): 1.1-22Kw
  • Dimension(L*W*H): Customized
  • Certification: CE, ISO,BV,SGS,TUV
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Model: LSY100/120/140/1600/200/250/300/400
  • Metric diameter of screw: 90-362mm
  • Rotary speed of main axis: 300-170r/min
  • Diameter of main case: 108-402mm
  • Max capacity: 7-120t/h
  • Max Length of conveying length: 8-25m
  • Working angle: 0°~60°
  • Feeding material: Cement, concrete, coal dust, carbon black, soda ash, flour, grain,pulp
  • Conveying trough: "U" and tubular shape
  • Conducted via alibaba.com: hot sale, Exported to USA, Europe, Asia, to all over the world

Packaging & Delivery

Packaging Details 1. wooden case
2. standard package
3. seaworthy
4.as request
industry small screw conveyor
Delivery Time 12-30 working days after we receive the deposit.
Product Description

Good sealing Continuous transmission Industry application small screw conveyor

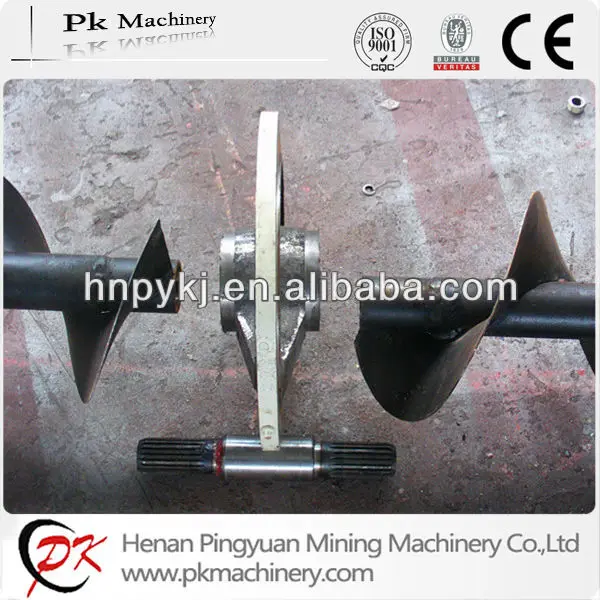

Industry small screw conveyor is a kind of continuous transmission equipment extensively used in the fields of the metallurgy, construction materials, chemical industry, food and the machinery processing. Horizontal screw conveyor has the advantages of sealed operation, simple structure. screw conveyor suitable for conveying powdery, granular and small bulk materials horizontally or aslope, such as coal, ash, slag, cement, food, etc. screw conveyor is an new transportation equipment with power device,gear box,coupling,screw axis and hanging bearing.the screw axis is made of several sections which connected with spline.The conveyor hold large load capacity and convenient to dismounting. open a besel on the casing to ensure a safe operation.

Application:

Industry small screw conveyor is widely used in chemical, metallurgy, paper making, and construction industries. The equipment is mainly suitable for field flowing work, such as concrete mixing station, bulk material transit storage, etc.

Performance and Features:

  1. Simple structure, good sealing, large capacity, easy operation, material charging and unloading in multiple spot.
  2. Working temperature is -20~50°C, with material temperature below 200°C.
  3. ISO9001:2008, CE certificate, SGS report.
  4. Alternative conveying trough, including U and tubular shape.
  5. Totally-enclosed structure without causing any environmental pollution.
  6. Construction available in mild steel and stainless steel.
  7. Easy assembly and replacement of component parts.
  8. Screw conveyor has easy maintenance and low operating cost.
  9. Multiple inlets and outlets.
Working Principle:

Industry small screw conveyor  consists of electric motor driven spiral, which is the only moving part, rotates within a food grade & sealed tube.The material moves along the spiral within the tube. The unique action of the flexible spiral conveyor eliminates the risk of the product separation that can take place in conventional pneumatic conveying systems where mixed materials have components of different densities and particle size.
We mainly provide two kinds of screw conveyors:

1. LS Series (Tubular and Trough Type)

i) Adopting DIN 15261-1986 standard;

ii) Screw diameter is from 100mm to 1250mm, with conveyor length up to 70m;

iii) Inclination angle is below 20 degree.

2. LSY Seris (Tubular Type)

i) Specialized cement screw conveyor;

ii) Screw diameter is 90/ 115/ 135/ 163/ 185/ 237/ 285/ 362mm, with conveyor length up to 22m;

iii) Inclination angle is below 60 degree.

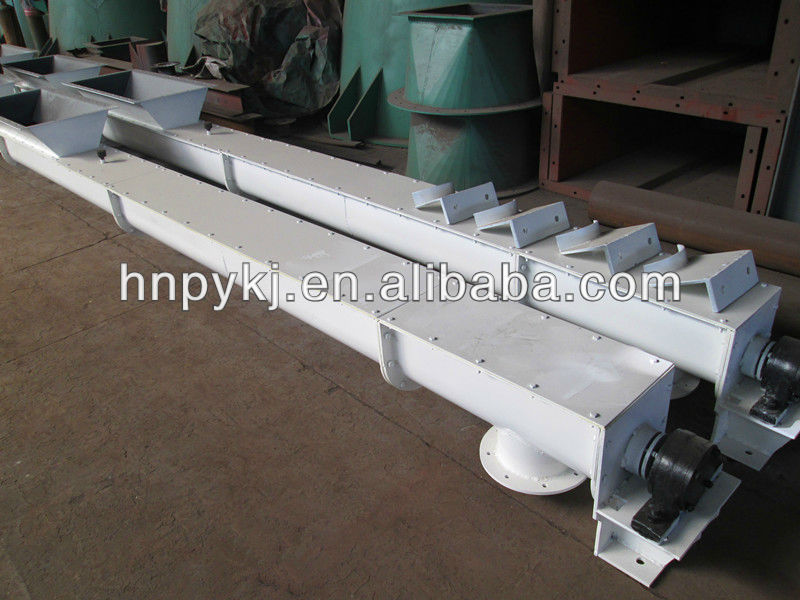

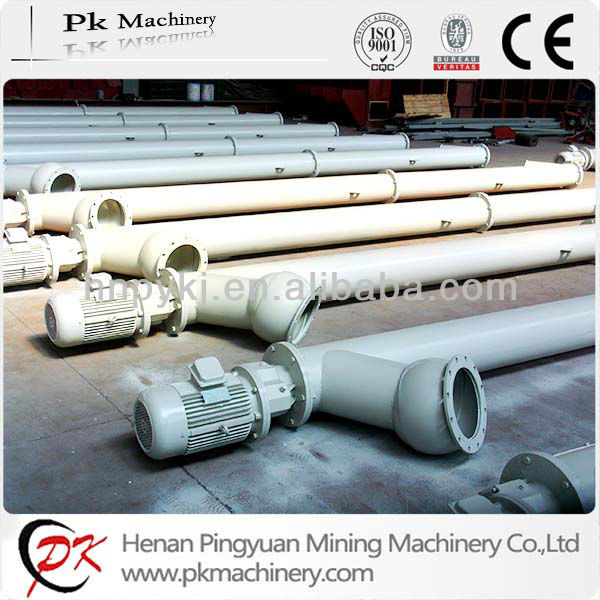

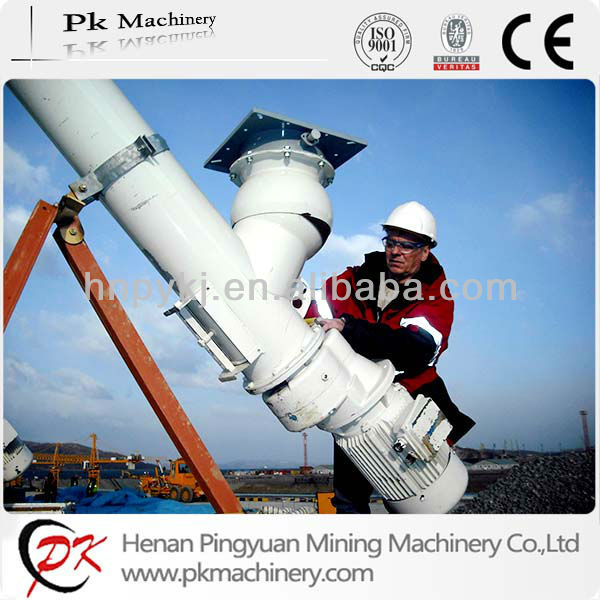

Product Show

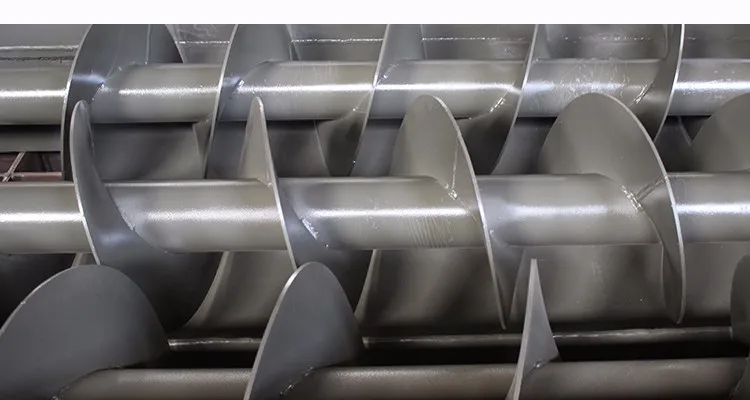

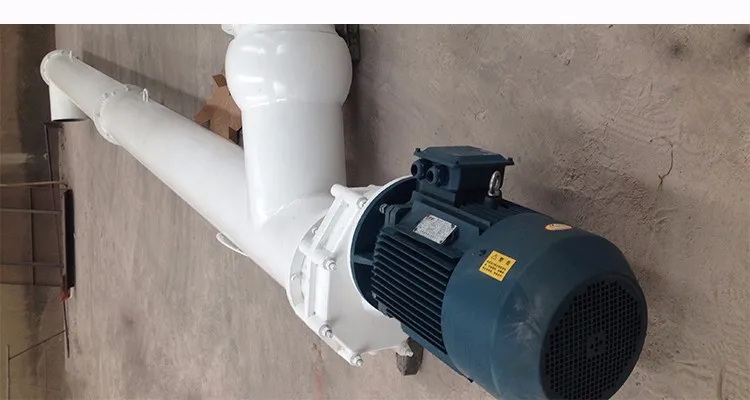

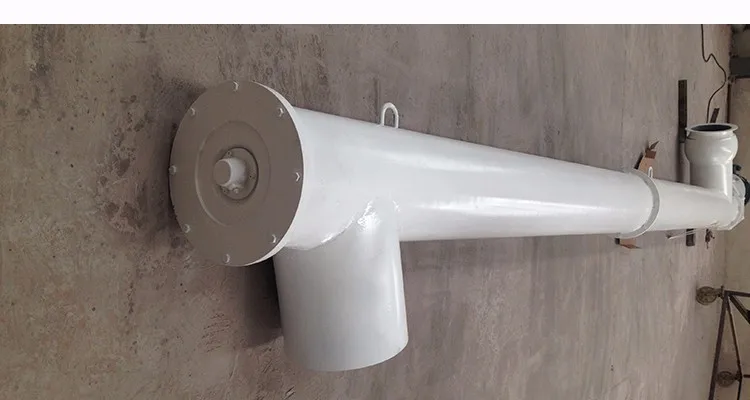

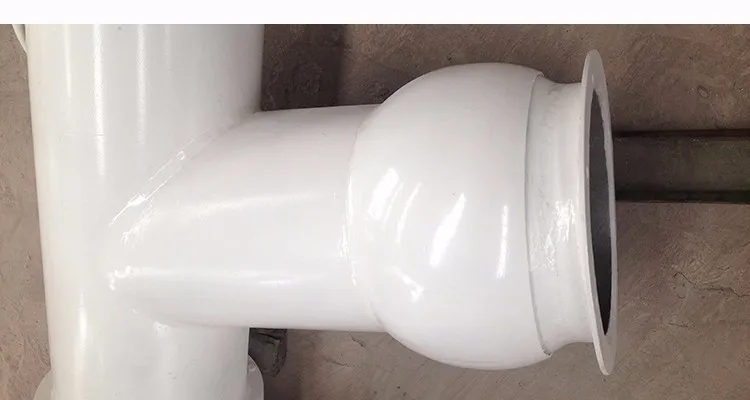

Detail Pictures
Technical Parameters
Single shaft spiral screw conveyor mainly consists of tube (head/ trail/ hanging bearings, conveying spiral, housing, cover plate and base plate), inlet and outlet chutes, as well as driving device (electric motor, reducer, coupling and base plate).

Model

LSY100

LSY120

LSY140

LSY160

LSY200

LSY250

LSY300

LSY400

Metric diameter of screw (mm)

90

115

135

163

185

237

285

362

Rotary speed of main axis (r/min)

300

300

300

308

260

200

170

170

Diameter of main case(mm)

108

133

159

194

219

273

325

402

Max capacity (t/h)

7

10

15

25

40

60

90

120

Max Length of conveying length L (m)

8

10

12

15

18

25

25

25

Working angle (degree)

0°~60°

0°~60°

0°~60°

0°~60°

0°~60°

0°~60°

0°~60°

0°~60°

Motor

model

L≤7M

Y90S-4

Y100L1-4

Y100L2-4

Y132S-4

Y132M-4

Y160L-6

Y180M-4

Y180M-4

Power(kw)

1.1

2.2

3

5.5

7.5

11

18.5

18.5

model

L≥7M

Y100L1-4

Y100L2-4

Y112M-4

Y132M-4

Y160M-4

Y180L-6

Y180L-4

Y180L-4

Power( kw)

2.2

3

4

7.5

11

15

22

22

Note: the parameter above is just for reference,it can be customized by different requirment.
Information Needed For The Quotation

1. Material name:_______

Physical characteristics

Bulk density:___t/m³

Feeding size:____mm

Working temperature:____degree

Moisture:____

2. Processing capacity:____(t/h or m³/h)

3. Inclination angle:__________degree

4. What is the conveying length?(the distance between the inlet and outlet)

Conveying length:_______m



Latest Export News
Screw Conveyor will be Delivered to Pakistan
Screw conveyor and scraper conveyor are ready to deliver to Pakistan on Aug. 13th, 2015 as planned.
As we all know, screw conveyor is widely used in dust removal, chemical, metallurgy, paper making, and construction industries which conveys powder or small particles. Rotary valve is used for continuous and quantitative feeding equipment conveyors material from the upper dust ash hopper into the screw conveyor.
Henan Pingyuan Mining Machinery Co.,Ltd.   MORE EXPORT NEWS
Packaging & Shipping

1.We can deliver industry small screw conveyor timely .

2.Standard packing or as per customer 's packing instruction .

3.15-30  days after receiving the deposit .

4.Different countries with different terms of payment, according to the actual situation and decide, negotiable

Company Information

Henan Pingyuan Mining Machinery Co.,Ltd  (PKmachinery) had earned many certificates about the whole strength and had cooperated with many group companies in the whole world. There is a systematized program in our company, every order will strictly according to the standard system to show our customer the best immediately.

PK machinery offers a full range of screening and conveying equipment,which involves vibrating screen,belt conveyor,bucket elevator,screw conveyor,scraper conveyor and related spare parts.What's more,PK Machinery is always cooperating with the world-class suppliers to ensure the product's high quality,including ABB,SEW,SIEMENS,etc.



As the saying goes,"there is no diamond,do not get porcelain living."

PK machinery has Sophisticated-equipment and advanced technology.

Up to now,PK machinery has already built the production lines as following: roller production line, pulley production line, automatic cutting production line, welding robots, planer milling, shear plate bending production line, steel pretreatment production line.

Our Services

1.Reply your enquiry in 24working hours ,anytime you can contact us .

2.Provide good before-sale / after -sale services.

3.Provide Professional &technical support.

4.View our factory ,sincerely treat per customer's requirement .



If you want to know more the screw conveyor ,kindly Click Here and send us a requirement.We can be dedicated to serve you.



FAQ

1.How long is the delivery time of your equipment?

The delivery time is within 30 working days. But when the project is very big and the customers have special requirement , the delivery could be extended ,based on different situations.

2.How long is the  equipment warranty period?

Our equipment warranty period is 1 year. Wearing parts and problem coursed by worker’s wrong operation are not included.

3.Can you give me a solution and quotation?

Absolutely sure, we can provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc.

 4.How could I trust your promise?

A:You may check the qualification on our website certified by the appraisal agency Bureau Veritas;

B:Company inspection always available.Sincerely welcome your visit.

Selection Conditions

We have someone who can guide you to know more about the industry small screw conveyor .

CLICK HERE.  Kindly send us your requirement.

♦Material to be processed: _____♦Max. granule size of the feeding material: _____mm

♦Handling capacity (Ps. It means the total material

capacity feeding from the inlet): _____t/h



♦Layer number: ______

♦Bulk Density: _____t/m3♦Mesh size of each layer: _____mm
♦Material temperature: _____℃;♦Particle distribution percentage:______
♦water content:____%We want to confirm the following information:
♦Material is corrosive or not: ____ (Ps. Yes or No)1)The percentage of X in the whole material:_____%;
♦Material is sticky or not: ____ (Ps. Yes or No)2)The percentage of Y in the whole material:_____%;
♦Working environment is indoor or outdoor: _____3)The percentage of Z in the whole material:_____%;)
♦Working environment temperature: ______ ℃♦Working power supply: _____V ______HZ

♦Upstream equipment (Ps. It means what kind of

equipment is used to feed the material): _____

♦Downstream equipment (Ps. It means what kind of equipment is used to discharge the material): _____
